4WD model

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

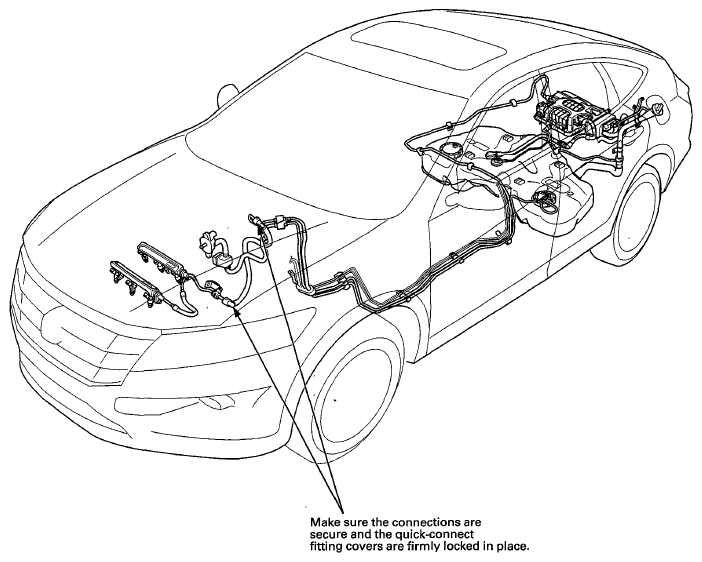

Fig 1: Identifying Fuel Lines System (4WD Model)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check all clamps, and make sure they are properly positioned and tightened.

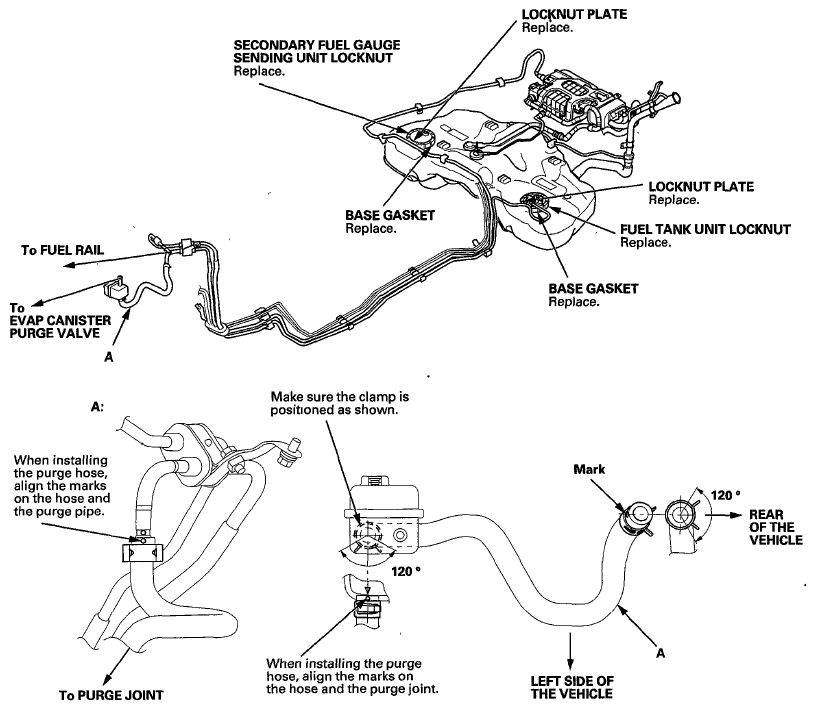

Fig 2: Fuel Lines Proper Installation Position (4WD Model) With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
