Injector Base Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front injector base (A) and the rear injector base (B) with new gaskets (C), and tighten the injector base mounting bolts/nuts (D) in a crisscross pattern in three steps, beginning with the inner nuts.
    NOTE: The front injector base gasket is different from the rear one. Do not mix injector base gasket types.

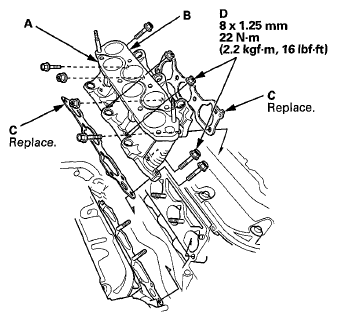

    Fig 1: Front Injector Base, Rear Injector Base, Gaskets And Injector Base Mounting Bolts/Nuts With Torque Specifications
    G06422384Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Connect the knock sensor connector (A) and install the harness holder mounting bolt (B).

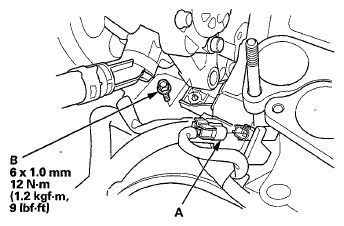

    Fig 2: Lnock Sensor Connector And Harness Holder Mounting Bolt With Torque Specifications
    G06422385Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the injectors (see INJECTOR REPLACEMENT ).
  4. Install the intake manifold (see INSTALLATION  ).
  5. Install the power steering pump and the power steering hose bracket (see step 27 on CYLINDER HEAD INSTALLATION ).
  6. Inspect for fuel leaks. Turn the ignition switch to ON (II) (do not operate the starter) so the fuel pump runs for about 2 seconds and pressurizes the fuel line. Repeat this operation three times, then check for fuel leakage at any point in the fuel line.
