Input Shaft (Mainshaft) Speed Sensor Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
  2. Remove the battery base (see step  12 on ).
  3. Disconnect the input shaft (mainshaft) speed sensor connector, and remove the input shaft (mainshaft) speed sensor (A).

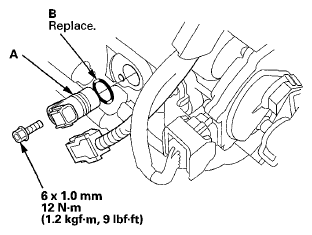

    Fig 1: Input Shaft (Mainshaft) Speed Sensor And O-Ring With Torque Specifications
    G06423214Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install a new O-ring (B) on a new input shaft (mainshaft) speed sensor, then install the input shaft (mainshaft) speed sensor.
  5. Check the connector for rust, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
  6. Install the battery base (see step  81 on ).
  7. Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
