A/T Gear Position Indicator Panel Assembly Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the shift lever knob (see SHIFT LEVER KNOB REPLACEMENT  ).
  2. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  3. Release the lock tabs (A) of the A/T gear position indicator panel base.

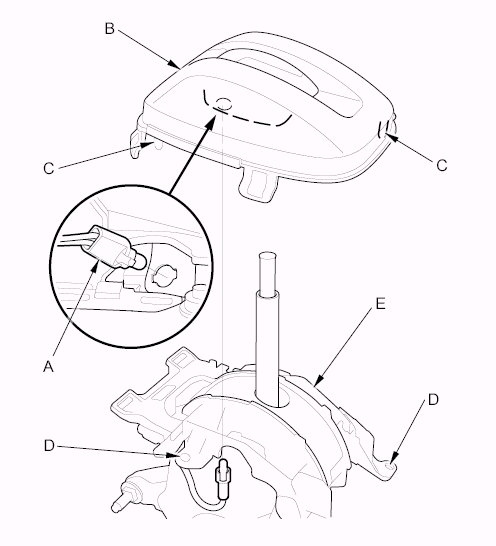

    Fig 1: Releasing Lock Tabs
    G06423380Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the A/T gear position indicator panel light socket (A) from the indicator panel (B), then remove the indicator panel.

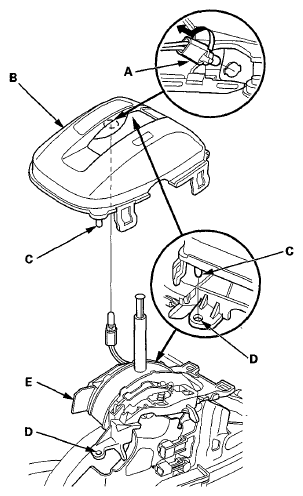

    Fig 2: Identifying A/T Gear Position Indicator Panel Light Socket And From Indicator Panel
    G06423381Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Replace the indicator panel, then install the indicator panel light socket.
  6. Install the indicator panel while aligning the pins (C) with the positioning holes (D) of the indicator panel base (E).
  7. Install the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  8. Install the shift lever knob (see SHIFT LEVER KNOB REPLACEMENT  ).
