Water Pump Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine coolant (see COOLANT REPLACEMENT  ).
  2. Remove the timing belt (see TIMING BELT INSPECTION ).
  3. Remove the timing belt adjuster (see TIMING BELT ADJUSTER REPLACEMENT ).
  4. Remove the five bolts securing the water pump (A), then remove the water pump.

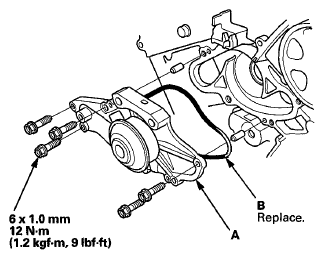

    Fig 1: Water Pump And O-Ring With Torque Specifications
    G06422394Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Inspect and clean the O-ring groove and the mating surface of the engine block.
  6. Install the water pump with a new O-ring (B).
  7. Clean up any spilled engine coolant.
  8. Install the timing belt adjuster (see TIMING BELT ADJUSTER REPLACEMENT ).
  9. Install the timing belt (see TIMING BELT INSTALLATION ).
  10. Refill the radiator with engine coolant, and bleed the air from the cooling system (see step  7 on ).
