Battery Terminal Disconnection and Reconnection: Reconnection

NOTE: Some systems store data in memory that is lost when the battery is disconnected. Do the following procedures to restore the systems back to normal operation.

Clean the battery terminals.
Test the battery (see BATTERY TEST ).
Reconnect the positive cable (A) to the battery (B) first, then reconnect the negative cable (C) to the battery.
NOTE: Always connect the positive cable to the battery first.

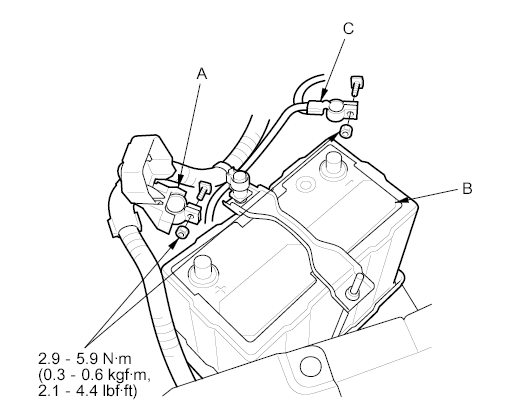

Fig 1: Identifying Positive Cable, Negative Cable & Battery
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Apply multipurpose grease to the terminals to prevent corrosion.
RESETTING THE POWER WINDOW CONTROL UNIT
Enter the anti-theft code(s) for the audio system and/or the navigation system (if equipped).
Enter the audio presets (if applicable), and enter the XM radio presets (if equipped).
Set the clock (for vehicles without navigation).
