Battery Removal and Installation: Installation

  1. Install the battery (A), then install the battery setting plate (B).
  2. Tighten the two nuts (C) equally until the battery is stable.
    NOTE: Do not deform the battery setting plate by over-tightening the nuts.

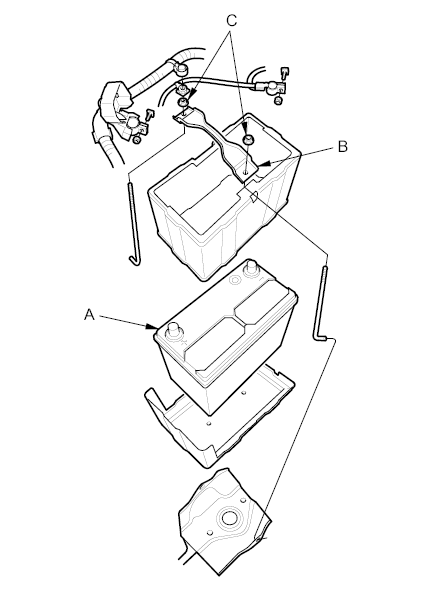

    Fig 1: Identifying Battery, Setting Plate & Nuts
    G00485510Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Do the battery terminal reconnection procedure (see RECONNECTION  ).
    NOTE: Make sure the battery is installed correctly, and the positive terminal and the negative terminal are not connected in reverse.
