Special Tools Required

KTC trim tool set SOJATP2014*

*Available through the American Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
Put on gloves to protect your hands.

Pull the top edge on the windshield side trim (A) up to detach the hooks (B).

Fig 1: Identifying Windshield Side Trim & Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull the top edge of the trim (A) up, and hold it, then slide the trim rearward along the A-pillar to release the clips (B) in the trim from the retainers (C) on the body. The retainers will stay in the body. Take care not to scratch the other trim and body.

Fig 2: Identifying Top Edge Of Trim
Courtesy of AMERICAN HONDA MOTOR CO., INC.

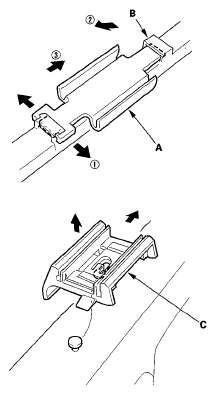

Replace the any damaged clips (A) on the trim (B) and the retainers (C) on the body.

Fig 3: Identifying Clips, Trim & Retainers
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Hold the trim up, and insert the bottom edge of the trim into the hood hinge cover (A). Align the top edge of the trim with the front edge of the roof side front trim (B), and fit the clips (C) into the retainers (D), then push on the trim until the hooks (E) and clips snap into place.

Fig 4: Identifying Hood Hinge Cover, Roof Side Front Trim, Clips & Retainers
Courtesy of AMERICAN HONDA MOTOR CO., INC.
