Except SC Models ('09-11 Models)

NOTE: Take care not to scratch the front bumper and the body.
  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Detach the clips, then pull up the front grille (A) by releasing the hooks (B) from the front bumper (C).

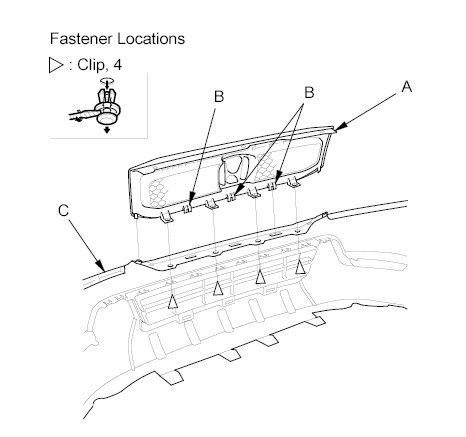

    Fig 1: Identifying Front Grille & Front Bumper With Hooks
    G00482785Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the grille in the reverse order of removal, and note these items:
    • Push the clips and the hooks into place securely.
    • If the clips are damaged or stress-whitened, replace them with new ones.
