Except SC Models ('07-08 Models)

NOTE:
  • Take care not to scratch the front bumper.
  • Put on the gloves to protect your hands.
  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Remove the front grille (A).
    1. Remove the screws.
    2. Detach the clips, and release the hooks (B)

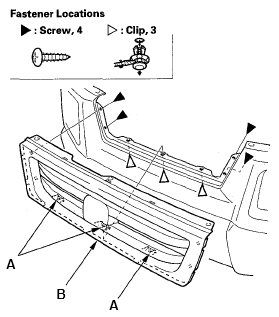

      3. Fig 1: Identifying Hooks & Front Grille
      G05451153Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the grille in the reverse order of removal, and note these items:
    • Make sure the rear hooks of the grille engage the bumper securely.
    • Push the clips and hooks into place securely.
    • Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
