Emblem Replacement

NOTE: When removing the emblems, take care not to scratch the body. Use dental floss to cut double-sided type.
  1. To remove the front "H" emblem, remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Clean the body surface with a sponge dampened in alcohol. After cleaning, keep oil, grease, and water from getting on the surface.
  3. Apply the emblems where shown. When installing the LEV emblem on the inside surface of the quarter glass, align the bottom of the application tape with the black ceramic, then press the emblem into place, and remove the application tape.

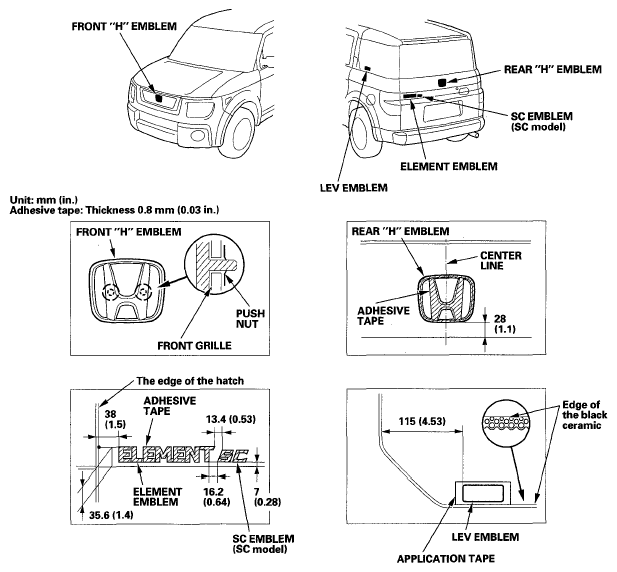

    Fig 1: Identifying Emblem Dimension ('07-08 Models)
    G05451198Courtesy of AMERICAN HONDA MOTOR CO., INC.

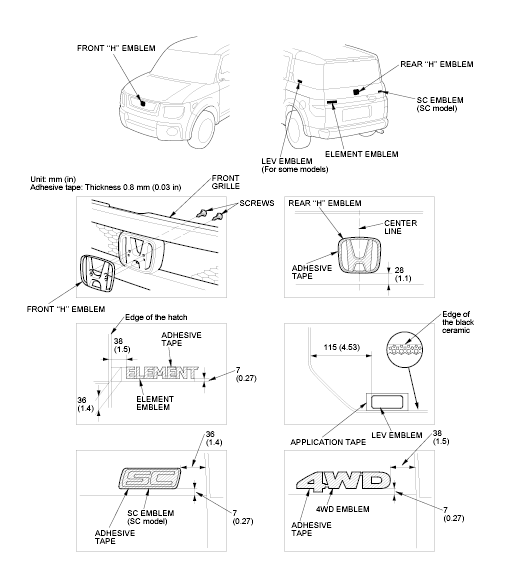

    Fig 2: Identifying Emblem Dimension ('09-11 Model)
    G00482804Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Reinstall the front bumper.
