Glove Box Removal/Installation

NOTE: Take care not to scratch the dashboard and related parts.

While holding the glove box (A), remove the glove box stop (B) on each side.

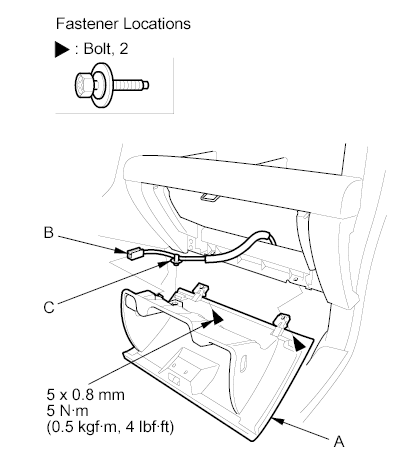

Fig 1: Identifying Glove Box & Stop
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts, then remove the glove box (A).

Fig 2: Identifying Glove Box
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the glove box in the reverse order of removal.
