Circuit Diagram
Circuit Diagram

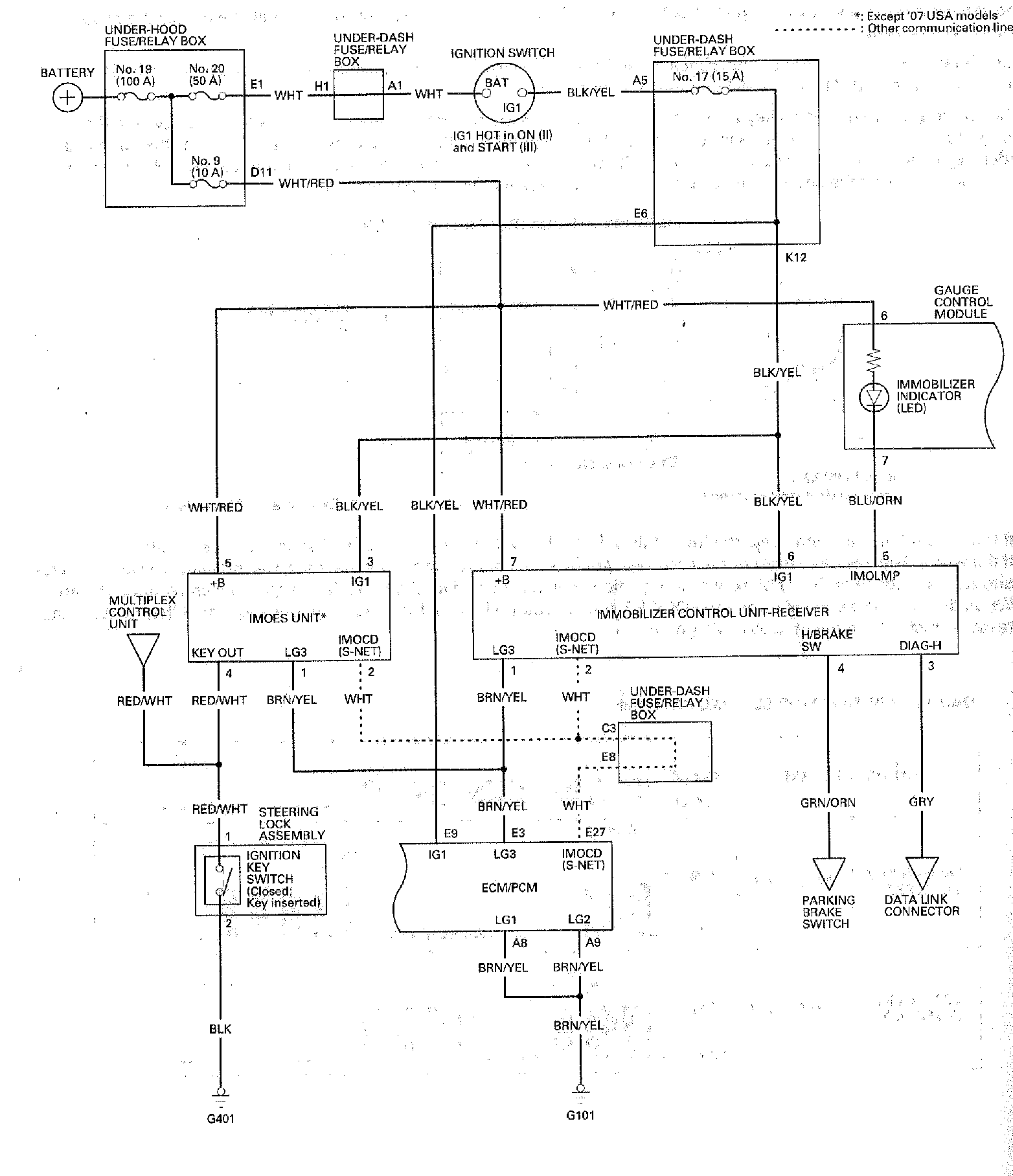

Fig 1: Identifying Immobilizer System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
