Circuit Diagram
>>
LX Model
LX Model

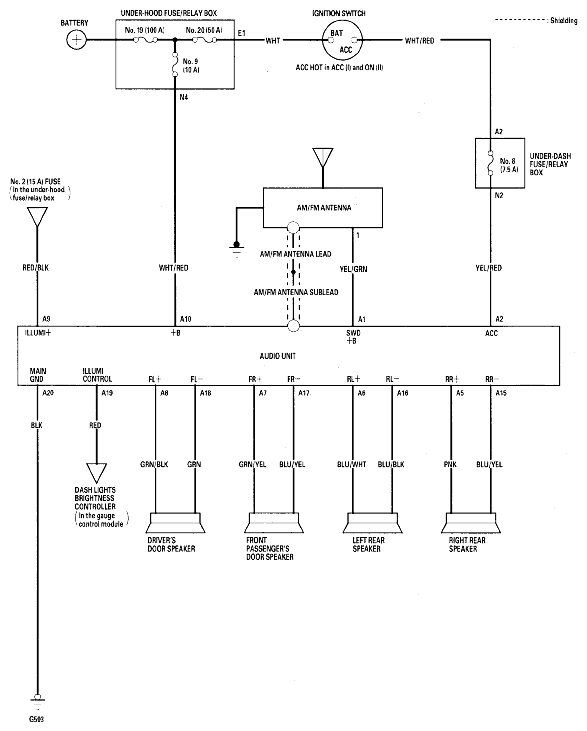

Fig 1: Identifying Audio System Circuit Diagram - LX Model
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
