Circuit Diagram

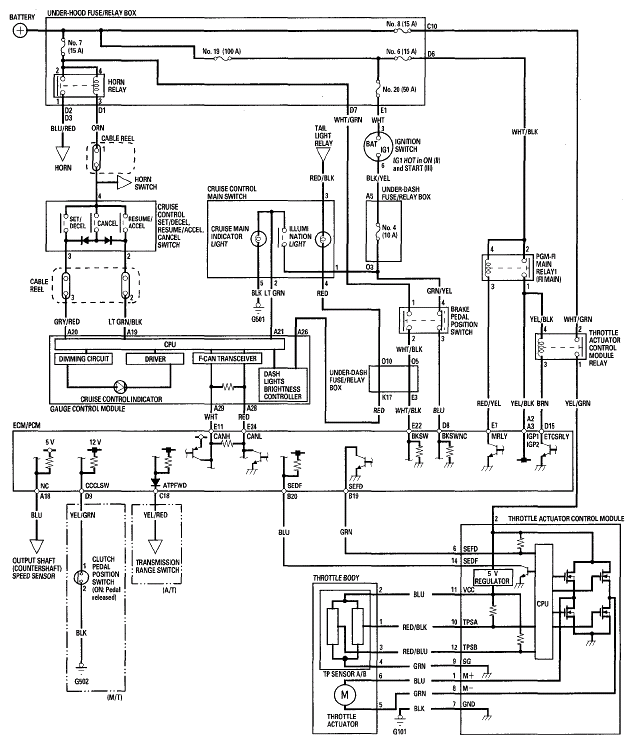

Fig 1: Identifying Cruise Control Circuit Diagram ('07-11 Models)

G05448481

Courtesy of AMERICAN HONDA MOTOR CO., INC.
