Home >> Honda >> 2007 >> Element SC, Standard >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Advanced Diagnostics >> DTC P0011: Variable Valve Timing Control (VTC) System Malfunction >> Notes

DTC P0011: Variable Valve Timing Control (VTC) System Malfunction: Notes

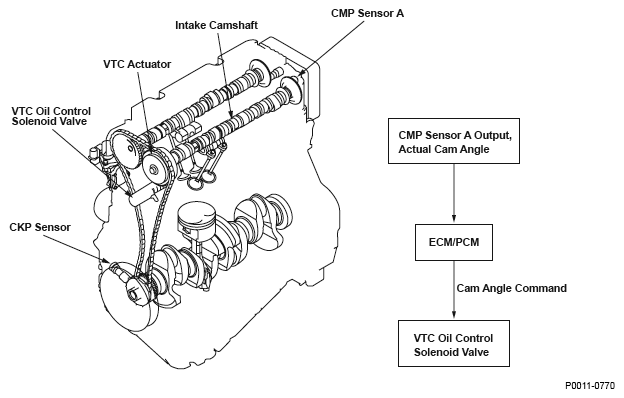

Fig 1: Identifying Variable Valve Timing Control (VTC) System Consisting Components With Flow Diagram

G04826793
