Wiper/Washer Switch Test/Replacement

Remove the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
Remove the steering column covers (see STEERING COLUMN REMOVAL AND INSTALLATION ).
Disconnect the 14P connector (A) from the wiper/washer switch (B).

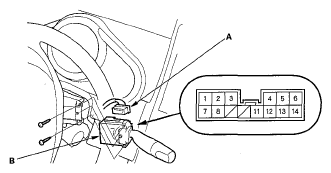

Fig 1: Identifying 14P Connector & Wiper/Washer Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two screws, then pull out the wiper/washer switch.
Inspect the connector terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, check for continuity between the terminals in each switch position according to the tables. If the continuity is not as specified, replace the switch.
Windshield

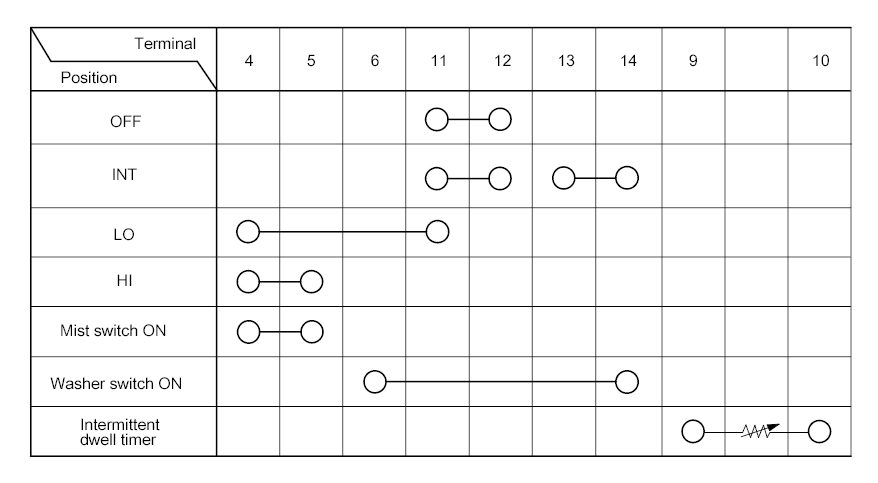

Fig 2: Identifying Terminals Continuity Table - Windshield
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear Window

Fig 3: Identifying Terminals Continuity Table - Rear Window
Courtesy of AMERICAN HONDA MOTOR CO., INC.
