Canada Models

  1. Remove the right inner fender (see FRONT INNER FENDER REPLACEMENT ).
  2. Disconnect the 2P connector (A) from the washer fluid level switch (B).

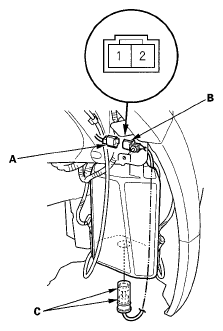

    Fig 1: Identifying Washer Fluid Level Switch 2P Connector Terminals
    G05451574Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the washer fluid level switch from the washer reservoir.
    NOTE: Fluid may flow out of the opening.
  4. Check for continuity between the No. 1 and No. 2 terminals in each float position (C).
    • There should be continuity when the float is down.
    • There should be no continuity when the float is up.
  5. If the continuity is not as specified, replace the switch.
