Unit Check (Quick Check): XM

This checks the GA-NET Bus line to the XM receiver.
When connection is shown with NG, check the connection between the XM receiver and the audio-navigation unit.

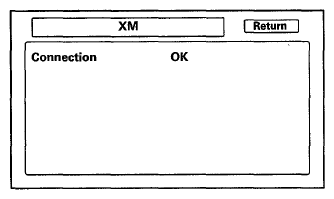

Fig 1: Navigation Screen Display - XM
