Unit Check (Quick Check): GPS

If GPS indicates NG (ANT), then check the entire GPS antenna wire from the audio-navigation unit to the GPS antenna. If the wire is crushed or damaged, substitute a known-good GPS ANTENNA  . If this diagnosis reads OK, replace the original GPS antenna. If the diagnostic still reads NG (ANT), replace the AUDIO-NAVIGATION UNIT  .

Select information to see the GPS satellite details.

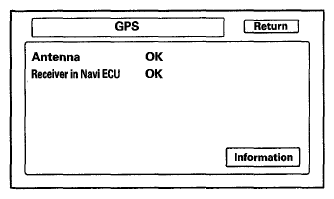

Fig 1: Navigation Screen Display - GPS

Courtesy of AMERICAN HONDA MOTOR CO., INC.
