Touch Panel Check 2

If you touch the any icons on the screen, the icon color changes while pressing the icon. If any icons of the screen doesn't respond, replace the AUDIO-NAVIGATION UNIT  .

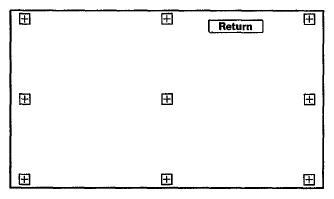

Fig 1: Navigation Screen Display - Touch Panel Check 2
G08049638Courtesy of AMERICAN HONDA MOTOR CO., INC.
