System Description
>>
System Diagram
>>
With Navigation
With Navigation

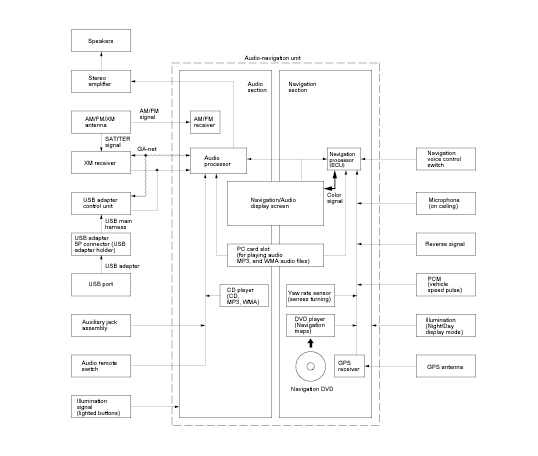

Fig 1: Identifying System Diagram (With Navigation)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
