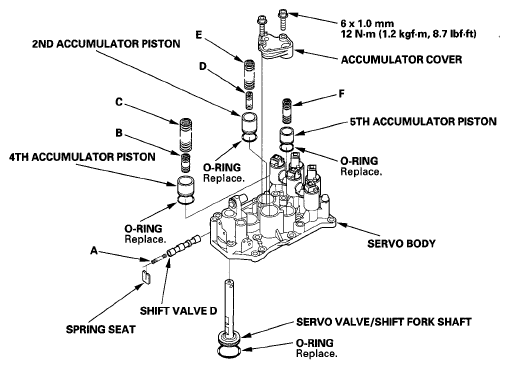

Servo Body Disassembly, Inspection, and Reassembly
- Clean all parts thoroughly in solvent, and dry them with compressed air. Blow out all passages.
- Inspect the valve body for scoring and damage.
- Check shift valve D for free movement. If it fails to slide freely, do the valve body repair procedure (see VALVE BODY REPAIR ).
- When removing and installing the shift solenoid valves, refer to shift solenoid valves removal and installation (see SHIFT SOLENOID VALVE REMOVAL AND INSTALLATION ).
- Coat all parts with ATF during assembly.
- Replace the O-rings with new ones.
SPRING SPECIFICATIONS
SPRING SPECIFICATIONS
| Springs | Standard (New)-Unit: mm (in.) | ||||
|---|---|---|---|---|---|
| Wire Diameter | O.D. | Free Length | No. of Coils | ||
| A | Shift valve D spring | 0.8 (0.031) | 5.6 (0.220) | 28.1 (1.106) | 15.9 |
| B | 4th accumulator spring B | 2.3 (0.091) | 12.2 (0.480) | 31.5 (1.240) | 6.6 |
| C | 4th accumulator spring A | 2.4 (0.094) | 18.6 (0.732) | 49.0 (1.929) | 7.1 |
| D | 2nd accumulator spring B | 2.1 (0.083) | 10.8 (0.425) | 34.0 (1.339) | 8.2 |
| E | 2nd accumulator spring A | 2.1 (0.083) | 16.6 (0.654) | 48.7 (1.917) | 8.4 |
| F | 5th accumulator spring | 2.5 (0.098) | 14.6 (0.575) | 29.9 (1.177) | 4.9 |
