Carrier Bearing Preload Inspection
Special Tools Required
- Driver handle, 15 x 135L 07749-0010000
- Attachment, 72 x 75 mm 07746-0010600
- Preload inspection tool 07HAJ-PK40201
NOTE:
- If the transmission housing, the torque converter housing, the differential carrier, the carrier bearing and the outer race, or the thrust shim were replaced, the bearing preload must be adjusted.
- Coat all parts with ATF during installation.
- Do not reuse the thrust shim from the torque converter housing.
- The illustration shows the 4WD transmission; the 2WD transmission is similar.
- Remove the bearing outer race (A), 76.2 mm thrust washer (B), and the 76 mm thrust shim (C) from the transmission housing (D) by heating the transmission housing to about 212°F (100°C) using a heat gun (E). Do not heat the transmission housing more than 212°F (100°C).NOTE: Let the transmission housing cool to room temperature before adjusting the bearing preload.
- Install the 76 mm thrust shim (A) in the transmission housing (B).
If you replace the 76 mm thrust shim with a new one, use the same thickness shim as the old one.
- Install the 76.2 mm thrust washer (C) and the bearing outer race (D) in the transmission housing.NOTE: Be sure to install the 76.2 mm thrust washer with the "41382RKY" mark facing downward.
- Install the bearing outer race securely so there is no clearance between the bearing outer race, the 76.2 mm thrust washer, the 76 mm thrust shim, and the transmission housing, using the driver handle and the 72 x 75 mm attachment.

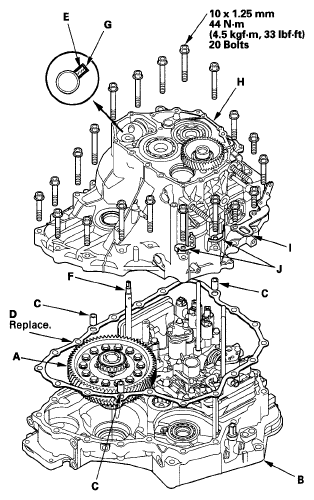

- Install the differential assembly (A) in the torque converter housing (B).
- Install the three dowel pins (C) and a new gasket (D) on the torque converter housing.
- Align the spring pin (E) of the control shaft (F) with the transmission housing groove (G) by turning the control shaft. Do not squeeze the end of the control shaft tips together when turning the shaft.
- Place the transmission housing (H) on the torque converter housing.
- Install the transmission housing mounting bolts (20 bolts) along with the transmission hanger (I) and harness clamp brackets (J). Tighten the mounting bolts to 44 N.m (4.5 kgf.m, 33 lbf.ft) in two or more steps in a crisscross pattern.
- Rotate the differential assembly in both directions to seat the bearings.
- Measure the starting torque of the differential assembly in both directions using the preload inspection tool, a torque wrench (A), and a socket (B) at normal room temperature.
Standard
New Bearing:
2.7-3.9 N.m (28-40 kgf.cm, 24-35 lbf.in.)
Reused Bearing:
2.5-3.6 N.m (25-37 kgf.cm, 22-32 lbf.in.)
- If the starting torque is out of standard, remove the 76 mm thrust shim and select a 76 mm thrust shim from the following table. Install a new 76 mm thrust shim and recheck. To increase the starting torque, increase the thickness of the 76 mm thrust shim. To decrease the starting torque, decrease the thickness of the 76 mm thrust shim. Changing the 76 mm thrust shim to the next size will increase or decrease starting torque about 0.3-0.4 N.m (3-4 kgf.cm, 2.7-3.5 lbf.in.).
THRUST SHIM, 76 mm
THICKNESS CHART
| No. | Part Number | Thickness |
|---|---|---|
| S | 41438-PX4-700 | 2.05 mm (0.081 in.) |
| T | 41439-PX4-700 | 2.10 mm (0.083 in.) |
| U | 41440-PX4-700 | 2.15 mm (0.085 in.) |
| A | 41441-PK4-000 | 2.20 mm (0.087 in.) |
| B | 41442-PK4-000 | 2.25 mm (0.089 in.) |
| C | 41443-PK4-000 | 2.30 mm (0.091 in.) |
| D | 41444-PK4-000 | 2.35 mm (0.093 in.) |
| E | 41445-PK4-000 | 2.40 mm (0.094 in.) |
| F | 41446-PK4-000 | 2.45 mm (0.096 in.) |
| G | 41447-PK4-000 | 2.50 mm (0.098 in.) |
| H | 41448-PK4-000 | 2.55 mm (0.100 in.) |
| I | 41449-PK4-000 | 2.60 mm (0.102 in.) |
| J | 41450-PK4-000 | 2.65 mm (0.104 in.) |
| K | 41451-PK4-000 | 2.70 mm (0.106 in.) |
| L | 41452-PK4-000 | 2.75 mm (0.108 in.) |
| M | 41453-PK4-000 | 2.80 mm (0.110 in.) |
| N | 41454-PK4-000 | 2.85 mm (0.112 in.) |
| O | 41455-PK4-000 | 2.90 mm (0.114 in.) |
| P | 41456-PK4-000 | 2.95 mm (0.116 in.) |
| Q | 41457-PK4-000 | 3.00 mm (0.118 in.) |
| R | 41458-PK4-000 | 3.05 mm (0.120 in.) |
| 0A | 41428-PRP-000 | 1.55 mm (0.061 in.) |
| 0B | 41429-PRP-000 | 1.60 mm (0.063 in.) |
| 0C | 41430-PRP-000 | 1.65 mm (0.065 in.) |
| 0D | 41431-PRP-000 | 1.70 mm (0.067 in.) |
| 0E | 41432-PRP-000 | 1.75 mm (0.069 in.) |
| 0F | 41433-PRP-000 | 1.80 mm (0.071 in.) |
| 0G | 41434-PRP-000 | 1.85 mm (0.073 in.) |
| 0H | 41435-PRP-000 | 1.90 mm (0.075 in.) |
| 0I | 41436-PRP-000 | 1.95 mm (0.077 in.) |
| 0J | 41437-PRP-000 | 2.00 mm (0.079 in.) |
THICKNESS CHART
| No. | Part Number | Thickness |
|---|---|---|
| A | 41428-PAX-000 | 1.575 mm (0.062 in.) |
| B | 41429-PAX-000 | 1.625 mm (0.064 in.) |
| C | 41430-PAX-000 | 1.675 mm (0.066 in.) |
| D | 41431-PAX-000 | 1.725 mm (0.068 in.) |
| E | 41432-PAX-000 | 1.775 mm (0.070 in.) |
| F | 41433-PAX-000 | 1.825 mm (0.072 in.) |
| G | 41434-PAX-000 | 1.875 mm (0.074 in.) |
| H | 41435-PAX-000 | 1.925 mm (0.076 in.) |
| I | 41436-PAX-000 | 1.975 mm (0.078 in.) |
| J | 41437-PAX-000 | 2.025 mm (0.080 in.) |
| K | 41438-PAX-000 | 2.075 mm (0.082 in.) |
| L | 41439-PAX-000 | 2.125 mm (0.084 in.) |
| M | 41440-PAX-000 | 2.175 mm (0.086 in.) |
| N | 41441-PAX-000 | 2.225 mm (0.088 in.) |
| O | 41442-PAX-000 | 2.275 mm (0.090 in.) |
| P | 41443-PAX-000 | 2.325 mm (0.092 in.) |
| Q | 41444-PAX-000 | 2.375 mm (0.094 in.) |
| R | 41445-PAX-000 | 2.425 mm (0.095 in.) |
| S | 41446-PAX-000 | 2.475 mm (0.097 in.) |
| T | 41447-PAX-000 | 2.525 mm (0.099 in.) |
| U | 41448-PAX-000 | 2.575 mm (0.101 in.) |
| V | 41449-PAX-000 | 2.625 mm (0.103 in.) |
| W | 41450-PAX-000 | 2.675 mm (0.105 in.) |
| X | 41451-PAX-000 | 2.725 mm (0.107 in.) |
| Y | 41452-PAX-000 | 2.775 mm (0.109 in.) |
| Z | 41453-PAX-000 | 2.825 mm (0.111 in.) |
| 0A | 41454-PAX-000 | 2.875 mm (0.113 in.) |
| 0B | 41455-PAX-000 | 2.925 mm (0.115 in.) |
| 0C | 41456-PAX-000 | 2.975 mm (0.117 in.) |
| 0D | 41457-PAX-000 | 3.025 mm (0.119 in.) |
