Circuit Diagram

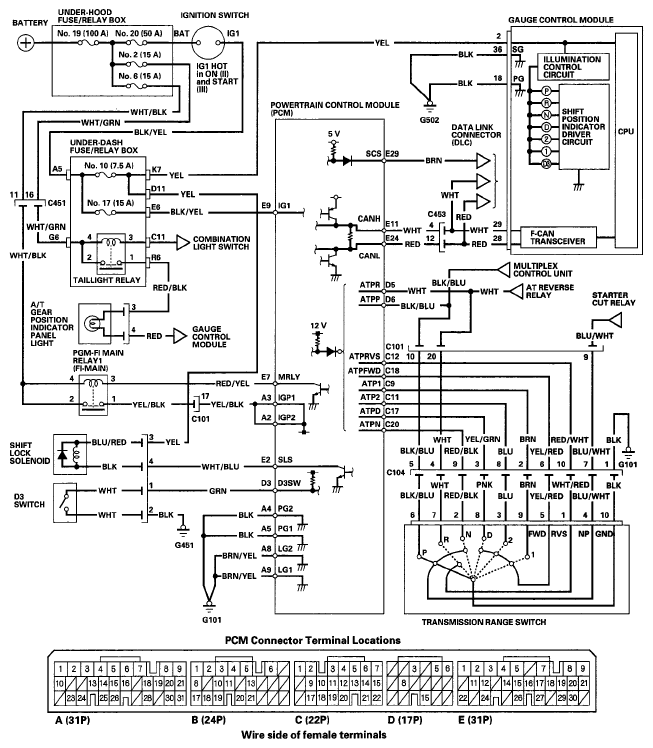

Fig 1: A/T Gear Position Indicator Circuit Diagram
G06267035Courtesy of AMERICAN HONDA MOTOR CO., INC.
