A/C Line Replacement

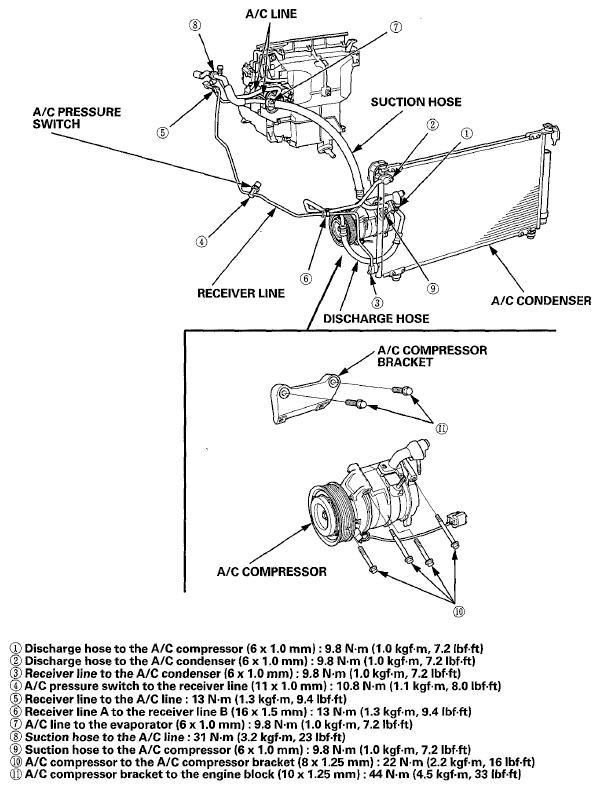

Fig 1: A/C Line Replacement Components With Torque Specifications
G06680464Courtesy of AMERICAN HONDA MOTOR CO., INC.
