Audio Unit Connector For Inputs And Outputs (With Navigation System)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

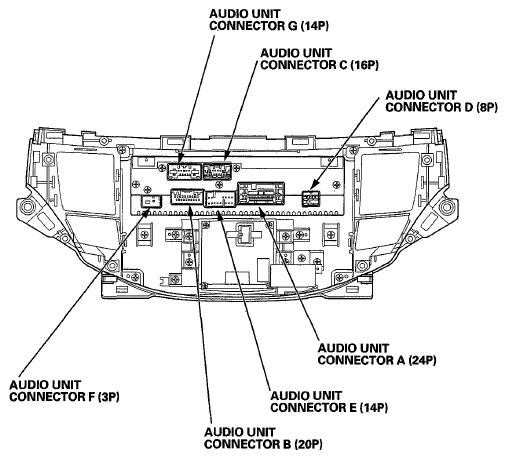

Fig 1: Identifying Audio Unit Connector For Inputs And Outputs (With Navigation System)
G06424219Courtesy of AMERICAN HONDA MOTOR CO., INC.

AUDIO UNIT CONNECTOR A (24P)

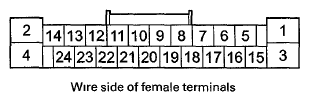

Fig 2: Identifying Audio Unit Connector A (24P)
G06424220Courtesy of AMERICAN HONDA MOTOR CO., INC.
WIRE COLOR SPECIFICATION

Cavity Wire Color Terminal Name Connect to
A1 BRN MAIN GND Body ground to G501
A2 Not used Not used --
A3 WHT +B No. A15 (10 A) fuse in the under-hood fuse/relay box
A4 Not used Not used --
A5 GRN RL PRE + Stereo amplifier
A6 RED RL PRE- Stereo amplifier
A7 GRY(1) SH RL GND Shield for terminals No. 5 and No. 6
A8 GRY(1) SH RR GND Shield for terminals No. 9 and No. 10
A9 GRN RR PRE+ Stereo amplifier
A10 RED RR PRE- Stereo amplifier
A11 BRN REMOTE GND Audio remote switch ground
A12 YEL SCTY Navigation display unit
A13 LT BLU K-LINE Data link connector (DLC)
A14 Not used Not used --
A15 GRN FL PRE+ Stereo amplifier
A16 RED FL FRE- Stereo amplifier
A17 GRY(1) SH FL GND Shield for terminals No. 15 and No. 16
A18 GRY(1) SH FR GND Shield for terminals No. 19 and No. 20
A19 GRN FR PRE + Stereo amplifier
A20 RED FR PRE- Stereo amplifier
A21 WHT SW+B Stereo amplifier
A22 PNK REMOTE Audio remote switch
A23 Not used Not used --
A24 PUR ACC No. B18 (7.5 A) fuse in the driver's under-dash fuse/relay box
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

AUDIO UNIT CONNECTOR B (20P)

Fig 3: Identifying Audio Unit Connector B (20P)
G06424221Courtesy of AMERICAN HONDA MOTOR CO., INC.
WIRE COLOR SPECIFICATION

Cavity Wire Color Terminal Name Connect to
B1 GRY(1) TELM SIG SH Shield for terminals No. 2 and No. 12
B2 RED TELM SIG - HandsFreeLink control unit
B3 BLU B-CAN L B-CAN bus communication
B4 GRN DUET RX Audio-HVAC subdisplay unit
B5 RED DUET TX Audio-HVAC subdisplay unit
B6 YEL AUX GND Auxiliary jack assembly
B7 GRY(1) AUX SH GND Shield for terminals No. 8, No. 17, and No. 18
B8 BLK AUX SIG GND Auxiliary jack assembly
B9 GRY(1) RG L SH Shield for terminals No. 10 and No. 20
B10 GRN RG L GND Navigation unit
B11 LT GRN HFL MUTE HandsFreeLink control unit, front HFL-navigation-ANC/active sound control microphone
B12 GRN TELM SIG+ HandsFreeLink control unit
B13 PNK B-CAN H B-CAN bus communication
B14 BLU DUET CONT Audio-HVAC subdisplay unit
B15 BLK(1) SH DUET GND Shield for terminals No. 4 and No. 5
B16 GRY AUX DET Auxiliary jack assembly
B17 WHT AUX R CH Auxiliary jack assembly
B18 RED AUX L CH Auxiliary jack assembly
B19 Not used Not used --
B20 RED RG L+ Navigation unit
(1) The shielded wires have a heat-shrink tube typically black or dark gray, may not match insulating the outside of the wire. The color of the insulating tube, the color of the wire listed on the schematic.

AUDIO UNIT CONNECTOR C (16P)

Fig 4: Identifying Audio Unit Connector C (16P)
G06424222Courtesy of AMERICAN HONDA MOTOR CO., INC.
WIRE COLOR SPECIFICATION

Cavity Wire Color Terminal Name Connects to
C1 Not used Not used --
C2 Not used Not used --
C3 Not used Not used --
C4 BLU ANC R MIC+8V Rear ANC/active sound control microphone
C5 WHT ANC F MIC+8V Front HFL-navigation-ANC/active sound control microphone
C6 GRY(1) SH ANC GND Shield for terminals No. 7, No. 8, No. 15, and No. 16
C7 BLK ANC R + Stereo amplifier
C8 GRN ANC R- Stereo amplifier
C9 Not used Not used --
C10 YEL NEP PCM (ENGINE SPEED PULSE)
C11 LT BLU CSSAMC PCM (4 cylinder by ENGINE SPEED PULSE)
C12 BRN CSSAMA PCM (3 cylinder by ENGINE SPEED PULSE)
C13 BLK(1) ANC R MIC SH Shield for terminal No. 4
C14 BLK(1) ANC F MIC SH Shield for terminal No. 5
C15 RED ANC F+ Stereo amplifier
C16 WHT ANC F- Stereo amplifier
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

AUDIO UNIT CONNECTOR D (8P)

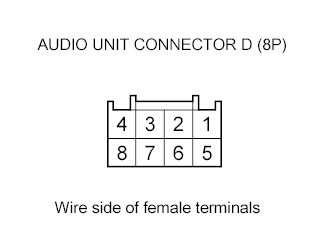

Fig 5: Identifying Audio Unit Connector D (8P)
G06424298Courtesy of AMERICAN HONDA MOTOR CO., INC.
WIRE COLOR SPECIFICATION

Cavity Wire Color Terminal Name Connects to
D1 Not used Not used --
D2 Not used Not used --
D3 Not used Not used --
D4 Not used Not used --
D5 GRN SUBW PRE+ Stereo amplifier
D6 BLK(1) SH SUBW GND Shield for terminals No. 5 and No. 7
D7 RED SUBW PRE- Stereo amplifier
D8 LT GRN AMP MUTE Stereo amplifier
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

AUDIO UNIT CONNECTOR E (14P)

Fig 6: Identifying Audio Unit Connector E (14P)
G06424224Courtesy of AMERICAN HONDA MOTOR CO., INC.
WIRE COLOR SPECIFICATION

Cavity Wire Color Terminal Name Connect to
E1 BLK GA AUDIO L+ XM receiver, USB adapter control unit
E2 GRN GA AUDIO R+ XM receiver, USB adapter control unit
E3 GRY(1) SH GA AUDIO Shield for terminals No. 1, No. 2, No. 7, and No. 8
E4 GRY(1) GA BUS SH Shield for terminals No. 11 and No. 12
E5 LT BLU GA SYS ON XM receiver, USB adapter control unit
E6 WHT GA +B XM receiver, USB adapter control unit
E7 RED GA AUDIO L- XM receiver, USB adapter control unit
E8 WHT GA AUDIO R- XM receiver, USB adapter control unit
E9 Not used Not used --
E10 BLK GA GND XM receiver, USB adapter control unit
E11 GRN GA BUS- XM receiver, USB adapter control unit, navigation display unit
E12 RED GA BUS+ XM receiver, USB adapter control unit, navigation display unit
E13 Not used Not used --
E14 Not used Not used --
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

AUDIO UNIT CONNECTOR F (3P)

Fig 7: Identifying Audio Unit Connector F (3P)
G06424225Courtesy of AMERICAN HONDA MOTOR CO., INC.
WIRE COLOR SPECIFICATION

Cavity Wire Color Terminal Name Connect to
F1 -- ANT+B AM/FM/XM antenna
F2 -- RF IN AM/FM/XM antenna
F3 -- RF SH Shield for terminal No. 2

AUDIO UNIT CONNECTOR G (14P)

Fig 8: Identifying Audio Unit Connector G (14P)
G06424226Courtesy of AMERICAN HONDA MOTOR CO., INC.
WIRE COLOR SPECIFICATION

Cavity Wire Color Terminal Name Connect to
G1 BLK 6CD GND Audio disc changer
G2 WHT 6CD ILLUMI- Audio disc changer
G3 ORN 6CD + B Audio disc changer
G4 BLU 6CD ILLUMI + Audio disc changer
G5 GRY(1) 6CD AUDIO SH Shield for terminals No. 6, No. 7, No. 11, and No. 12
G6 GRN 6CD AUDIO R- Audio disc changer
G7 WHT 6CD AUDIO L- Audio disc changer
G8 GRY(1) 6CD BUS SH Shield for terminals No. 9 and No. 14
G9 RED 6CD BUS- Audio disc changer
G10 LT BLU 6CD SYS ON Audio disc changer
G11 BLK 6 CD AUDIO R+ Audio disc changer
G12 RED 6CD AUDIO L+ Audio disc changer
G13 Not used Not used --
G14 GRN 6CD BUS+ Audio disc changer
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
