Center Console Panel Removal/Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the front seat, the dashboard, or the related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

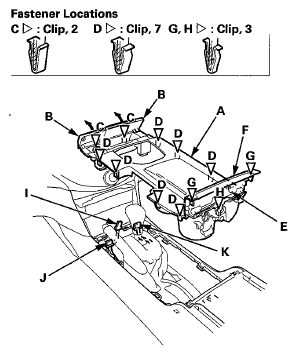

Remove the center console panel (A).
1. Open the center pocket lids (B), and the console armrest.
2. Hold the center pocket lids and gently pull them up to detach the front clips (C).
3. Detach the clips (D) and the hook (E) along the edge of the panel.
4. Pry up on the rear corner edges of the console box trim (F) with the appropriate trim tool to detach the clips (G), and pull up the panel to detach the clip (H).
5. Disconnect the front accessory power socket connector (I).
6. With seat heater: Disconnect the driver's seat heater switch connector (J) and the front passenger's seat heater switch connector (K).

  Fig 1: Identifying Driver's Seat Heater Switch Connector With Clips
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

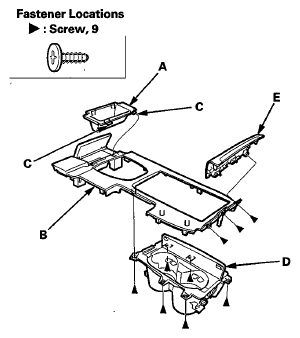

If necessary, remove the utility inner pocket (A) from the center console panel (B) by pulling it up to release the hooks (C). Remove the screws, then remove the beverage holder (D) and the console box trim (E) from the center console panel.

Fig 2: Identifying Center Console Panel And Beverage Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the console panel in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Make sure each connector is plugged in properly.
- Push the clips and the hook into place securely.
