DTC P0134: Air/Fuel Ratio (A/F) Sensor (Sensor 1) Heater System Malfunction: Notes

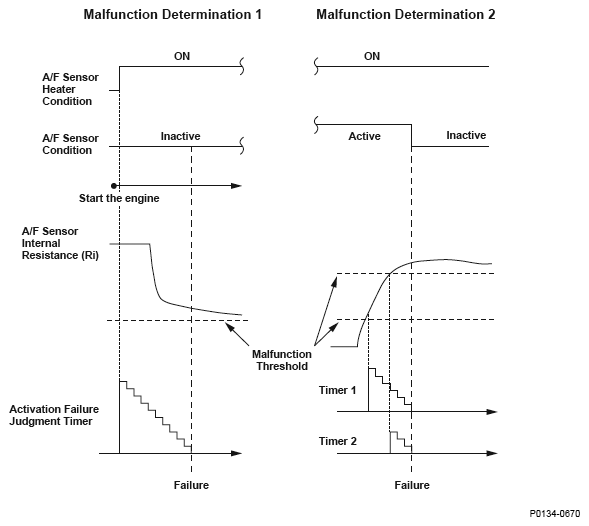

Fig 1: Air/Fuel Ratio (A/F) Sensor 1 Malfunction Determination

G04817964
