Rear Seat Hinge Lock Removal/Installation

Remove the rear seat.
Remove the hinge lock (A).
1. Remove the screw (B), then remove the knob (C).
2. Remove the screws (D), and detach the hooks (E), then remove the outer hinge lock cover (F) and inner hinge lock cover (G).
3. Remove the bolts (H) and wave washers (I).

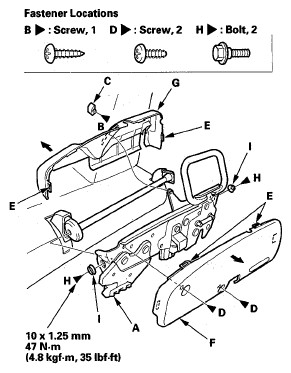

  Fig 1: Hinge Lock With Torque Specifications
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the hinge lock in the reverse order of removal.
