Splash Shield Replacement

NOTE: Take care not to scratch the body.
  1. Remove the splash shield (A).
    1. From both wheel arches, remove the clips (B) securing the front inner fender (C) and splash shield to the body.
    2. From under the front bumper (D), remove the clips (B) and bolts (E).
    3. Pull the splash shield out.

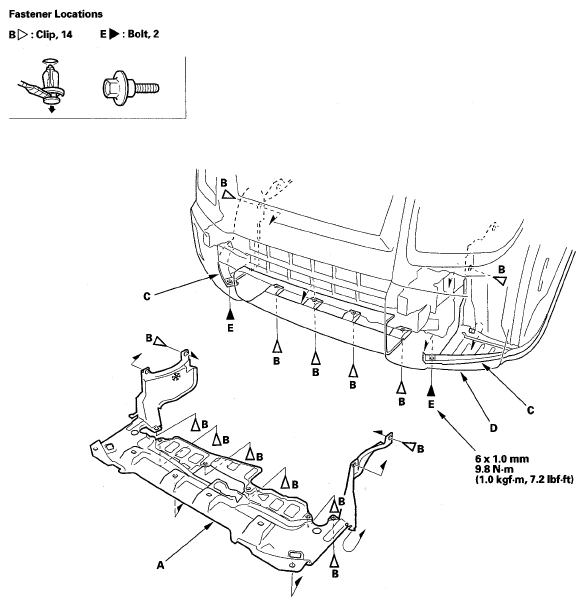

      Fig 1: Identifying Splash Shield Replacement
      G05451199Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the splash shield in the reverse order of removal, and note these items:
    • Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
    • Push the clips into place securely.
