Black Raster

This diagnostic screen checks for pixels that may be stuck on. The entire display must be black. If pixels are stuck on, replace the AUDIO-NAVIGATION UNIT  .

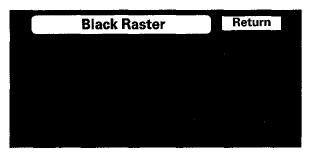

Fig 1: Navigation Screen Display - Black Raster

Courtesy of AMERICAN HONDA MOTOR CO., INC.
