DTC P0457: Evaporative Emission (EVAP) System Leak Detected/Fuel Fill Cap Loose or Missing: Notes

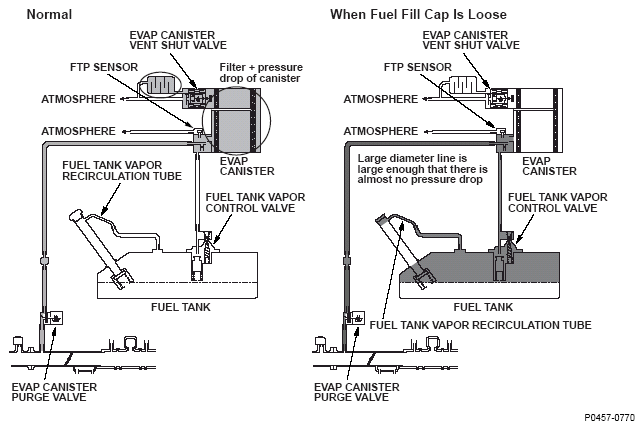

Fig 1: Evaporative Emission (EVAP) System Operation Diagram
G04823236

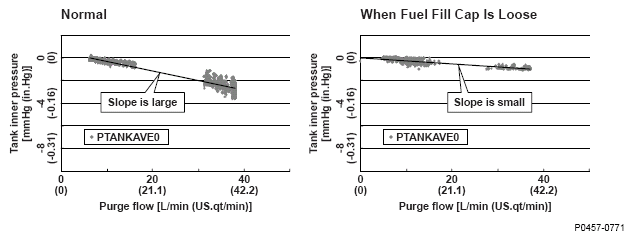

Fig 2: Relationship Between Purge Flow And Fuel Tank Pressure
G04823237
