Component Location Index

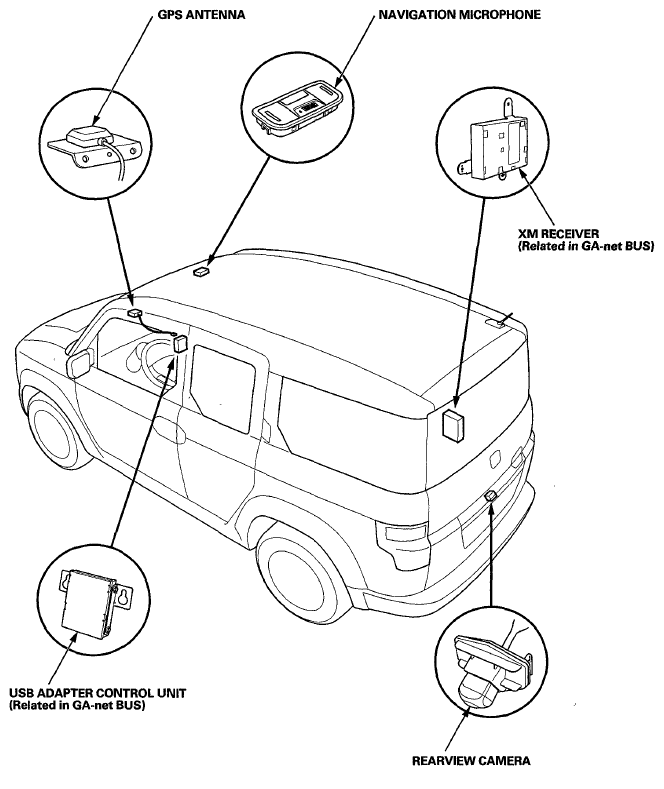

Fig 1: Navigation System Component Location Index (1 Of 2)
G08049587Courtesy of AMERICAN HONDA MOTOR CO., INC.

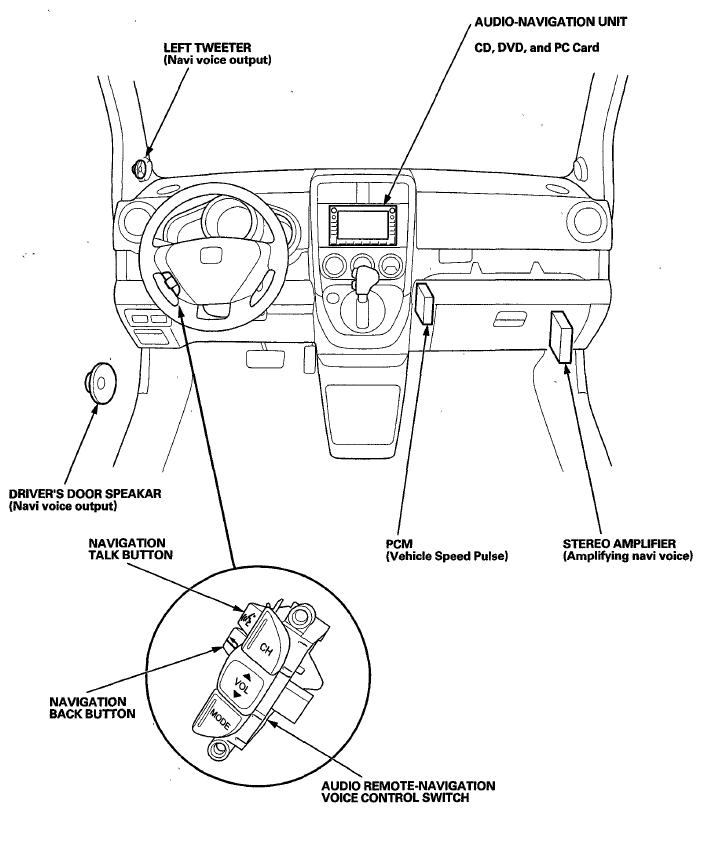

Fig 2: Navigation System Component Location Index (2 Of 2)
G08049588Courtesy of AMERICAN HONDA MOTOR CO., INC.
