Component Location Index

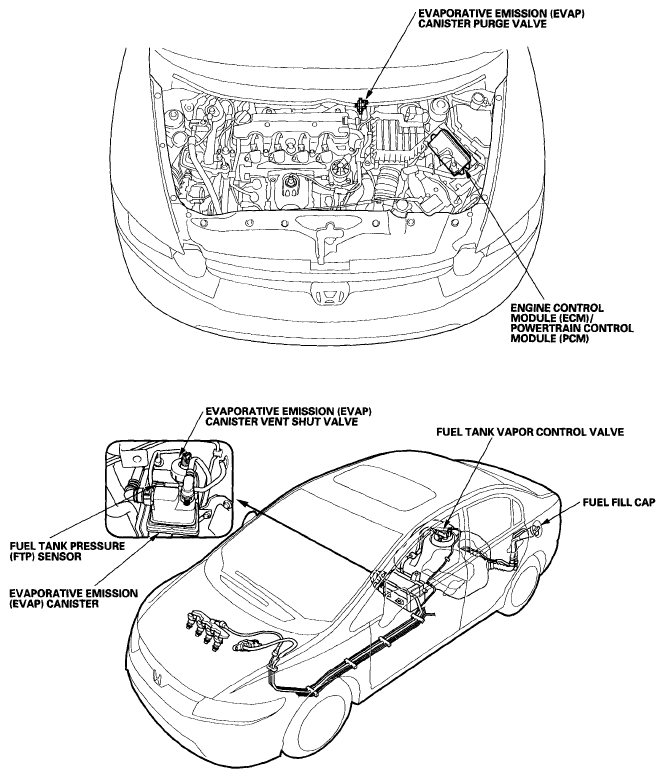

Fig 1: Identifying EVAP System Component Location

G04665560

Courtesy of AMERICAN HONDA MOTOR CO., INC.
