Regulator Valve Body

The regulator valve body contains the regulator valve, the torque converter check valve, the lock-up shift valve, and the 1st and 3rd accumulators.

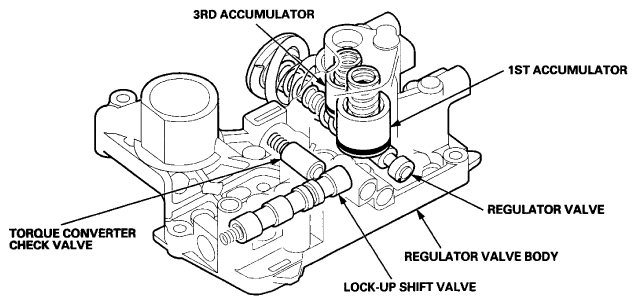

Fig 1: Identifying Regulator Valve Body Locations
G06615512Courtesy of AMERICAN HONDA MOTOR CO., INC.
