Shift Lever Knob Replacement

NOTE:
  • Refer to the Shift Lever Disassembly and Reassembly (see SHIFT LEVER DISASSEMBLY/REASSEMBLY ) as needed during the following procedures.
  • Do not wipe off the grease that is applied to the portion of the shift lever marked with an asterisk (*) when you disassemble or assemble it because a special grease is used.
  1. Wrap the end of a flat-tip screwdriver (A) with tape, pry the shift lever knob cover locks (B), and remove the shift lever knob cover (C).

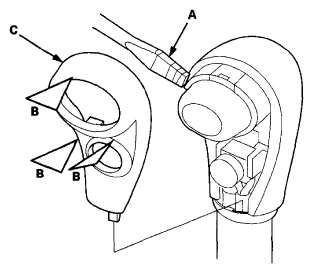

    Fig 1: Prying Shift Lever Knob Cover Locks And Shift Lever Knob Cover
    G06615835Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the screws (A), the shift lever button (B), and the spring (C).

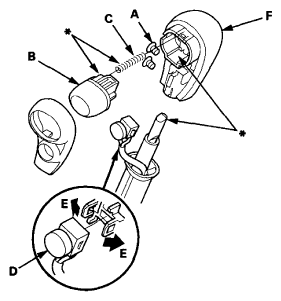

    Fig 2: Identifying Shift Lever Button, Spring And Screws
    G06615836Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the D3 switch (D) by expanding its locks (E) from the shift lever knob, and remove the shift lever knob (F).
  4. Install the shift lever button spring (A) and the shift lever button (B) in the shift lever knob (C), and install the shift lever knob over the shift lever.

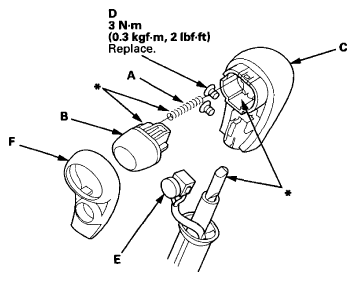

    Fig 3: Shift Lever Button Spring, Shift Lever Button And Shift Lever Knob With Torque Specification
    G06615837Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Secure the shift lever knob with new screws (D).
  6. Install the D3 switch (E) and the shift lever knob cover (F) on the shift lever knob.
  7. Install the shift lever (see SHIFT LEVER INSTALLATION ).
