Road Test

Warm up the engine to normal operating temperature (the radiator fan comes on).
4WD: Apply the parking brake, and block all four wheels.
2WD: Apply the parking brake, and block both rear wheels.
Start the engine, then shift to D while pressing the brake pedal. Press the accelerator pedal, and release it suddenly. The engine should not stall.
Repeat step 3 in all shift lever positions.

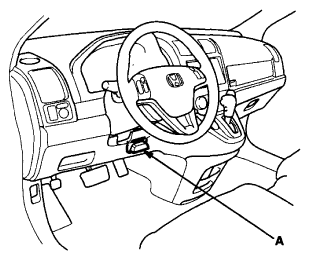

Connect the HDS to the DLC (A).

Fig 1: Identifying Data Link Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch to ON (II). Make sure the HDS communicates with the PCM, and go to the A/T Data List. If it does not, go to the DLC circuit troubleshooting; K24Z1 engine (see DLC CIRCUIT TROUBLESHOOTING ), K24Z6 engine (see DLC CIRCUIT TROUBLESHOOTING ).
Prepare the HDS to take a HIGH SPEED SNAPSHOT (refer to the HDS user's guide for more details if needed):
- Select the High Speed icon.
- Select these parameters:
  - Vehicle Speed
  - Output Shaft (Countershaft) Speed (rpm)
  - Input Shaft (Mainshaft) Speed (rpm)
  - Engine Speed-TP Sensor (1)
  - APP Sensor A (V)
  - ATF Temp Sensor (V)
  - Battery Voltage
  - Shift Control
  - Brake Switch
- Set the Trigger Type to Parameter.
- Adjust the Parameter setting to APP Sensor A above 1.2 V.
- Set the recording time to 60 seconds.
- Set the trigger point to -30 seconds.
Find a suitable level road. When you are ready to do the test, press OK on the HDS.
Monitor the HDS, and accelerate quickly until the APP Sensor A reads 1.3 V. Maintain a steady throttle until the transmission shifts to 5th gear, then slow the vehicle and come to a stop.
Save the snapshot if the entire event was recorded, or increase the recording time setting as necessary, and repeat step 9.
Adjust the parameter setting to 2.4 V. Test-drive the vehicle again. While monitoring the HDS, accelerate quickly until the APP Sensor A reads 2.5 V. Maintain a steady throttle until the transmission shifts to 5th gear (or a reasonable speed), then slow the vehicle and come to a stop.
Save the snapshot if the entire event was recorded, or increase the recording time setting as necessary, and repeat step 11.
Accelerate quickly until the accelerator pedal is to the floor. Maintain a steady pedal until the transmission shifts to 3rd gear, then slow to a stop, and save the snapshot.

Review each snapshot individually, and compare the Shift Control, the APP Sensor A voltage, and the Vehicle Speed to the table.

Upshift: D Position (K24Z1 engine)

ACCELERATOR PEDAL POSITION SENSOR VOLTAGE REFERENCE CHART

Accelerator pedal position sensor A voltage: 1.3 V
1st→2nd	9-11 mph (14-18 km/h)
2nd→3rd	17-21 mph (27-33 km/h)
3rd→4th	24-29 mph (38-46 km/h)
4th→5th	37-43 mph (59-69 km/h)
Lock-up ON	31-36 mph (50-58 km/h)
Accelerator pedal position sensor A voltage: 2.5 V
1st→2nd	21-25 mph (34-40 km/h)
2nd→3rd	39-45 mph (62-72 km/h)
3rd→4th	64-71 mph (103-115 km/h)
4th→5th	106-116 mph (171-187 km/h)
Lock-up ON	82-91 mph (132-146 km/h)
Fully-opened throttle Accelerator pedal position sensor A voltage: 4.4 V
1st→2nd	36-42 mph (58-68 km/h)
2nd→3rd	64-71 mph (103-115 km/h)
3rd→4th	99-109 mph (159-175 km/h)

Downshift: D Position (reference) (K24Z1 engine)

ACCELERATOR PEDAL POSITION SENSOR VOLTAGE REFERENCE CHART

Accelerator pedal position sensor A voltage: 1.3 V
Lock-up OFF	30-35 mph (49-57 km/h)
5th→4th	30-37 mph (49-59 km/h)
4th→3rd	21-24 mph (33-39 km/h)
3rd→1st	4-8 mph (7-13 km/h)
Accelerator pedal position sensor A voltage: 2.5 V
Lock-up OFF	71-78 mph (114-126 km/h)
Fully-opened throttle Accelerator pedal position sensor A voltage: 4.4 V
5th→4th	113-123 mph (182-198 km/h)
4th→3rd	83-91 mph (133-147 km/h)
3rd→2nd	51-58 mph (82-94 km/h)
2nd→1st	25-31 mph (40-50 km/h)

Upshift: D Position (K24Z6 engine)

ACCELERATOR PEDAL POSITION SENSOR VOLTAGE REFERENCE CHART

Accelerator pedal position sensor A voltage: 1.3 V
1st→2nd	9-11 mph (14-18 km/h)
2nd→3rd	17-21 mph (27-33 km/h)
3rd→4th	24-29 mph (38-46 km/h)
4th→5th	37-43 mph (59-69 km/h)
Lock-up ON	31-36 mph (50-58 km/h)
Accelerator pedal position sensor A voltage: 2.5 V
1st→2nd	21-25 mph (34-40 km/h)
2nd→3rd	39-45 mph (62-72 km/h)
3rd→4th	64-71 mph (103-115 km/h)
4th→5th	106-116 mph (171-187 km/h)
Lock-up ON	82-91 mph (132-146 km/h)
Fully-opened throttle Accelerator pedal position sensor A voltage: 4.4 V
1st→2nd	38-44 mph (61-71 km/h)
2nd→3rd	71-80 mph (115-129 km/h)
3rd→4th	111-121 mph (179-195 km/h)

Downshift: D Position (reference) (K24Z6 engine)

ACCELERATOR PEDAL POSITION SENSOR VOLTAGE REFERENCE CHART

Accelerator pedal position sensor A voltage: 1.3 V
Lock-up OFF	30-35 mph (49-57 km/h)
5th→4th	30-37 mph (49-59 km/h)
4th→3rd	21-24 mph (33-39 km/h)
3rd→1st	4-8 mph (7-13 km/h)
Accelerator pedal position sensor A voltage: 2.5 V
Lock-up OFF	68-75 mph (109-121 km/h)
Fully-opened throttle Accelerator pedal position sensor A voltage: 4.4 V
5th→4th	113-123 mph (182-198 km/h)
4th→3rd	83-91 mph (133-147 km/h)
3rd→2nd	51-58 mph (82-94 km/h)
2nd→1st	25-31 mph (40-50 km/h)

Drive the vehicle in 4th or 5th gear in D, then shift to 2. The vehicle should immediately begin to slow down from engine braking, then slow down to a stop.
Shift to 1, accelerate from a stop to full throttle, and check for abnormal noise and clutch slippage. Upshifts should not occur in this position.
Shift to 2, accelerate from a stop to full throttle, and check for abnormal noise and clutch slippage. Upshifts and downshifts should not occur in this position.
Shift to R, briefly accelerate from a stop at full throttle, and check for abnormal noise and clutch slippage.
Park the vehicle on a slope (about 16 degrees), apply the parking brake, and shift into P. Release the brake; the vehicle should not move.
NOTE: Always use the brake to hold the vehicle when stopped on an incline in gear. Depending on the grade of the incline, the vehicle could roll if the brake is released.
