Output Shaft (Countershaft) Speed Sensor Replacement

  1. Remove the air cleaner:
  2. Disconnect the output shaft (countershaft) speed sensor connector, and remove the output shaft (countershaft) speed sensor (A) and the sensor washer (B).

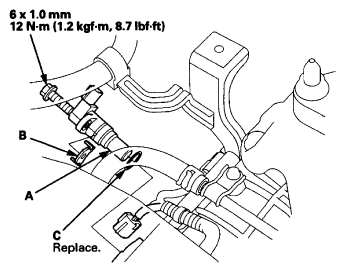

    Fig 1: Identifying Output Shaft (Countershaft) Speed Sensor And Sensor Washer
    G06615690Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install a new O-ring (C) on a new output shaft (countershaft) speed sensor, then install the output shaft (countershaft) speed sensor and the sensor washer in the transmission housing.
  4. Check the connector for rust, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
  5. Install the air cleaner:
