Input Shaft (Mainshaft) Speed Sensor Replacement

  1. Remove the air cleaner:
  2. Disconnect the input shaft (mainshaft) speed sensor connector, and remove the input shaft (mainshaft) speed sensor (A).

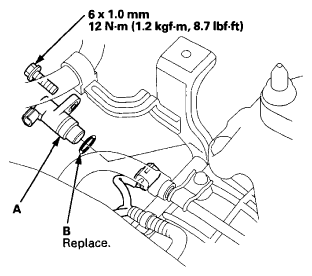

    Fig 1: Input Shaft (Mainshaft) Speed Sensor And O-Ring With Torque Specification
    G06615689Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install a new O-ring (B) on a new input shaft (mainshaft) speed sensor, then install the input shaft (mainshaft) speed sensor in the transmission housing.
  4. Check the connector for rust, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
  5. Install the air cleaner:
