Transmission Range Switch Replacement

1. Raise the vehicle on a lift, or apply the parking brake, block the rear wheels, and raise the front of the vehicle. Make sure it is securely supported.
2. Shift the shift lever into N.
3. Remove the transmission range switch cover.
   Fig 1: Identifying Transmission Range Switch Cover And Bolts

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Disconnect the transmission range switch connector (A), then remove the transmission range switch (B).
   Fig 2: Identifying Transmission Range Switch Connector, Transmission Range Switch And Bolt

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Make sure the selector control shaft is in the N position. If necessary, move the shift lever from P to N.
   NOTE: Do not use the selector control shaft to adjust the shift position. If the control shaft tips are squeezed together it will cause a faulty signal or position due to play between the selector control shaft and the transmission range switch.
   Fig 3: Identifying Selector Control Shaft In N Position

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Set a new transmission range switch (A) to the N position. Align the cutouts (B) on the rotary-frame with the neutral positioning cutouts (C) on the transmission range switch, then put a 2.0 mm (0.08 in) feeler gauge blade (D) in the cutouts to hold the transmission range switch in the N position.
   NOTE: Be sure to use a 2.0 mm (0.08 in) blade or equivalent to hold the transmission range switch in the N position.
   Fig 4: Identifying Transmission Range Switch And Cutouts On Rotary-Frame

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Install the transmission range switch (A) gently on the selector control shaft (B) while holding it in the N position with the 2.0 mm (0.08 in) feeler gauge blade (C).
   Fig 5: Installing Transmission Range Switch On Selector Control Shaft

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Tighten the bolts on the transmission range switch while you continue to hold the N position. Do not move the transmission range switch when tightening the bolts. Then remove the feeler gauge.

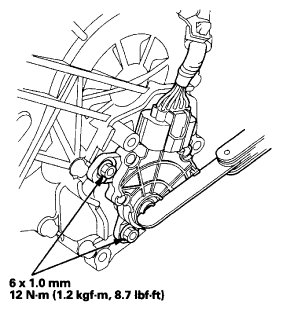

   Fig 6: Transmission Range Switch And Bolts With Torque Specification

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
9. Check the connectors for rust, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
10. Turn the ignition switch to ON (II). Move the shift lever through all positions, and make sure the transmission range switch synchronized with the A/T gear position indicator.
11. Check that the engine will start with the shift lever in P and N, and will not start in any other shift lever position.
12. Check that the back-up lights come on when the shift lever is in R.
13. Allow all four wheels (4WD) or the front wheels (2WD) to rotate freely, then start the engine, and check the shift lever operation.
14. Install the transmission range switch cover.

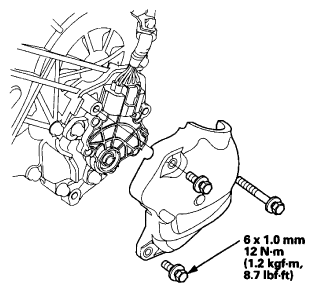

Fig 7: Transmission Range Switch Cover And Bolts With Torque Specification

Courtesy of AMERICAN HONDA MOTOR CO., INC.
