HVAC Control Unit Removal/Installation

  1. Move the shift lever to position 1.
  2. Place protective tape (A) on both sides of the dashboard next to the HVAC control unit.

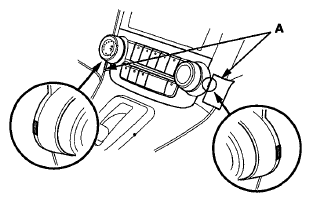

    Fig 1: Locating Protective Tape On Both Sides Of Dashboard Next To HVAC Control Unit
    G06611914Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Insert a flat-tip screwdriver in the groove on each side, then pull straight out on both screwdriver shafts.
    NOTE: Do not pry with the flat-tip screwdrivers.

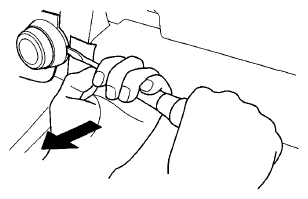

    Fig 2: Inserting Flat-Tip Screwdriver In Groove On Each Side
    G06611915Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the HVAC control unit (A). Disconnect the connector (B), then remove the harness clip (C).

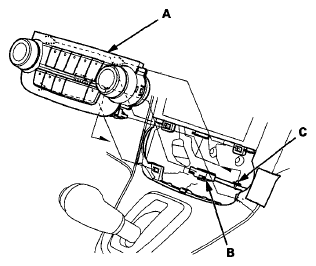

    Fig 3: Locating HVAC Control Unit, Connector And Harness Clip
    G06611916Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the control unit in the reverse order of removal. After installation, operate the various functions to make sure they work properly.
  6. Run the self-diagnosis function to confirm that there are no problem in the system (see GENERAL TROUBLESHOOTING INFORMATION ).
