End Cover Installation

Special Tools Required

Mainshaft Holder 07GAB-PF50101

1. Install the mainshaft holder onto the mainshaft.
   Fig 1: Installing Mainshaft Holder Onto Mainshaft

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Lubricate the following parts with ATF:
   • Splines and threads of the mainshaft.
   • Splines of the mainshaft idler gear.
   • The old conical spring washers and the old locknuts.
3. Install the mainshaft idler gear (A), the old conical spring washer (B), and the old locknut (C) on the mainshaft (D), and tighten the locknut to 226 N.m (23.0 kgf.m, 166 lbf.ft).
   NOTE:

   • Do not tap the idler gear to install.
   • Use a torque wrench to tighten the locknut. Do not use an impact wrench.
   Fig 2: Mainshaft Idler Gear, Old Conical Spring Washer And Old Locknut On Mainshaft With Torque Specification

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

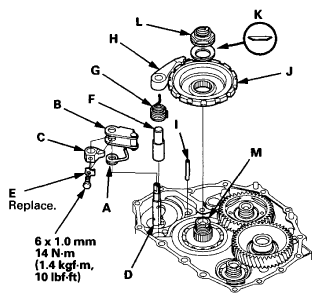

4. Install the park lever spring (A), the park lever (B), and the park lever stop (C) on the selector control shaft (D), then install the lock bolt with a new lock washer (E). Do not bend the lock tab of the lock washer until step 18.
   Fig 3: Park Lever Spring, Park Lever And Park Lever Stop On Selector Control Shaft With Torque Specification

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Install the park pawl shaft (F), the park pawl spring (G), the park pawl (H), and the stop shaft (I) on the transmission housing.
6. Lubricate the following parts with ATF:
   • Threads and splines of the countershaft.
   • The old conical spring washer and the old locknut.
   • Areas where the park gear contacts the conical spring washer.
7. Install the park gear (J), the old conical spring washer (K), and the old locknut (L) on the countershaft (M).
8. Lift the park pawl up, and engage it with the park gear, then tighten the locknut to 226 N.m (23.0 kgf.m, 166 lbf.ft).
   NOTE:

   • Do not tap the park gear to install.
   • Use a torque wrench to tighten the locknut. Do not use an impact wrench.
   • Countershaft locknut has left-hand threads.
9. Remove the locknuts and the conical spring washers from the mainshaft and the countershaft.
10. Lubricate the threads of the shafts, new locknuts, and new conical spring washers with ATF.
11. Install new conical spring washers (A) with the stamped mark side facing up in the direction shown, and install a new mainshaft locknut (B), a new countershaft locknut (C), and a new secondary shaft locknut (D).
    Fig 4: Identifying Conical Spring Washers And Mainshaft Locknut

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
12. Tighten the locknuts to 167 N.m (17.0 kgf.m, 123 lbf.ft).
    NOTE:

    • Be sure to install the conical spring washers in the direction shown.
    • Use a torque wrench to tighten the locknut. Do not use an impact wrench.
    • Countershaft and secondary shaft locknuts have left-hand threads.
13. Remove the mainshaft holder from the mainshaft.

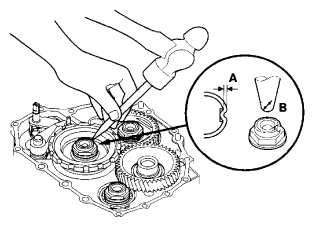

14. Stake the locknuts into the shafts in depth (A) of 0.7-1.3 mm (0.03-0.05 in) using a 3.5 mm punch (B).
    Fig 5: Staking Locknuts Into Shafts In Depth

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

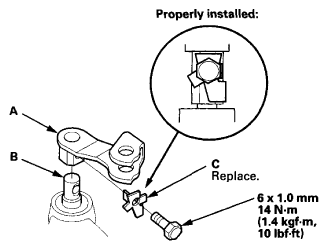

15. Install the selector control level (A) on the selector control shaft (B), and install the bolt with a new lock washer (C), then bend the lock tab of the lock washer against the bolt head.
    Fig 6: Selector Control Level On Selector Control Shaft With Torque Specification

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

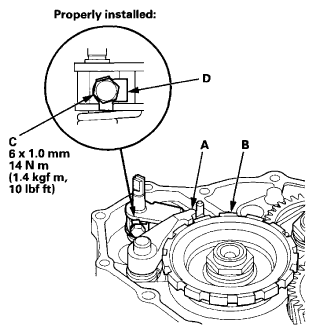

16. Set the park lever in the P position, then check that the park pawl (A) engages the park gear (B).
    Fig 7: Park Pawl And Park Gear With Torque Specification

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
17. If the park pawl does not engage fully, do the park lever stop inspection and adjustment (see PARK LEVER STOP INSPECTION AND ADJUSTMENT ).
18. Tighten the lock bolt (C), and bend the lock tab of the lock washer (D) against the bolt head.

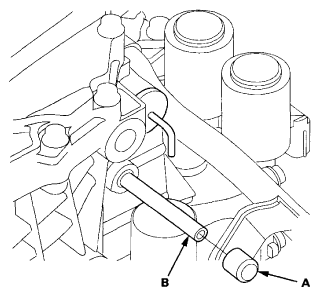

19. Install the ATF feed pipe (A) into the idler gear shaft, and install the ATF lubrication pipe (B) into the transmission housing.
    Fig 8: Identifying ATF Lubrication Pipe Into Transmission Housing

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

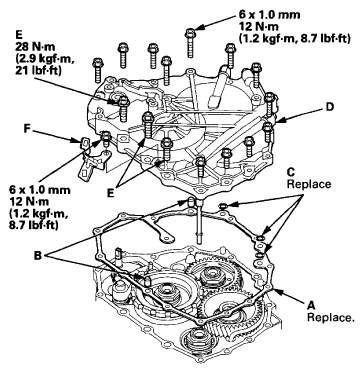

20. Install a new gasket (A) on the transmission housing, and install the two dowel pins (B) and new O-rings (C) over the top of the ATF feed pipes.
    Fig 9: Transmission Housing And Bolts With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
21. Install the end cover (D), and tighten the three special bolts (E) and the 6 x 1.0 mm bolts (12 bolts).
22. Install the harness clamp bracket (F) on the end cover.
23. Move the selector control shaft (A) from the P position to the N position by turning the selector control shaft on the torque converter side.
    NOTE: Do not squeeze the end of the selector control shaft tips together when turning the shaft. If the tips are squeezed together it will cause a faulty shift position signal or position due to the play between the selector control shaft and the transmission range switch.
    Fig 10: Moving Selector Control Shaft From P Position To N Position

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
24. Align the cutouts (A) on the control shaft with the neutral positioning cutouts (B) on the transmission range switch (C), then put a 2.0 mm (0.08 in) feeler gauge blade (D) in the cutouts to hold in the N position.
    NOTE: Be sure to use a 2.0 mm (0.08 in) blade or equivalent to hold the transmission range switch in the N position.
    Fig 11: Holding Transmission Range Switch In N Position

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

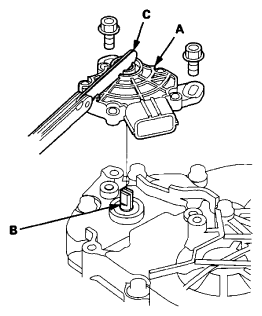

25. Install the transmission range switch (A) gently on the selector control shaft (B) while holding it in the N position with the 2.0 mm (0.08 in) blade (C).
    Fig 12: Installing Transmission Range Switch On Selector Control Shaft

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
26. Tighten the bolts on the transmission range switch while you continue to hold it in the N position. Do not move the transmission range switch when tightening the bolts. Remove the feeler gauge.
    Fig 13: Transmission Range Switch And Bolts With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

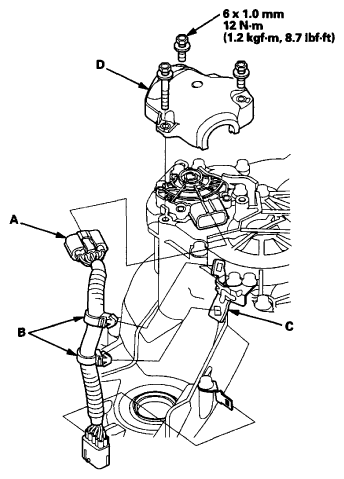

27. Connect the transmission range switch connector (A) securely, then install the harness clamps (B) on the clamp bracket (C).
    Fig 14: Transmission Range Switch Connector And Harness Clamps With Torque Specification

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
28. Install the transmission range switch cover (D).
29. Clean the mounting surface and the fluid passage of A/T clutch pressure control solenoid valve A and the transmission housing.
30. Install a new gasket (B) on the transmission housing, and install the ATF pipe (C) and the ATF joint pipes (D).
    NOTE: Be sure to install a new gasket with the blue side toward the transmission housing.
    Fig 15: Gasket On Transmission Housing With Torque Specification

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

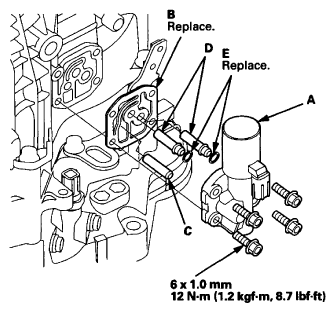

31. Install new O-rings (E) over the ATF joint pipes, and install A/T clutch pressure control solenoid valve A.
32. Clean the mounting surface and the fluid passage of A/T clutch pressure control solenoid valves B and C and the transmission housing.
33. Install a new gasket (A) and the ATF joint pipes (D) on the transmission housing, and install new O-rings (E) over the ATF joint pipes.
    NOTE: Be sure to install a new gasket with the blue side toward the transmission housing.
    Fig 16: ATF Joint Pipes On Transmission Housing With Torque Specification

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

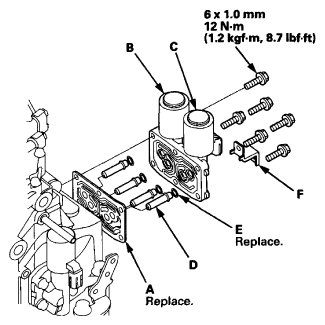

34. Install A/T clutch pressure control solenoid valves B and C with the harness clamp bracket (F).
35. Install a new O-ring (A) on the dipstick guide tube (B), then install the dipstick guide tube.
    Fig 17: O-Ring On Dipstick Guide Tube With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

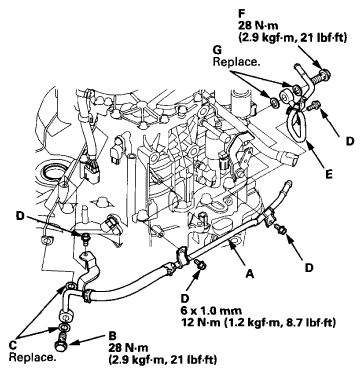

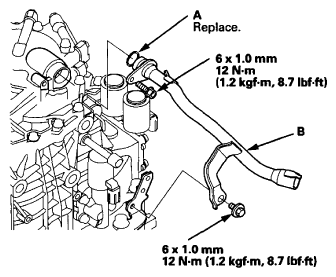

36. Install the ATF cooler inlet line (A) with the line banjo bolt (B) and new sealing washers (C), and secure the ATF inlet line with the bolts (D) on the transmission.
    Fig 18: ATF Cooler Inlet Line With Line Banjo Bolt And Sealing Washers With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
37. Install the ATF cooler outlet line (E) with the line banjo bolt (F) and new sealing washers (G), and secure the ATF outlet line with the bolt on the transmission.
38. Install the breather cap (A) on the breather pipe (B) if the breather cap was removed.
    Fig 19: Identifying Breather Cap On Breather Pipe

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

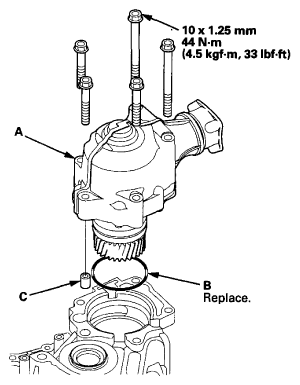

39. 4WD: Install the transfer assembly (A) with a new O-ring (B) and the dowel pin (C).
