D3 Switch Replacement

NOTE:
  • Refer to the Shift Lever Disassembly and Reassembly (see SHIFT LEVER DISASSEMBLY/REASSEMBLY ) as needed during the following procedures.
  • Do not wipe off the grease that is applied to the portion of the shift lever marked with an asterisk (*) when you disassemble or assemble it because a special grease is used.
  1. Remove the shift lever (see SHIFT LEVER REMOVAL ).
  2. Wrap the end of a flat-tip screwdriver (A) with tape, pry the shift lever knob cover locks (B), and remove the shift lever knob cover (C).

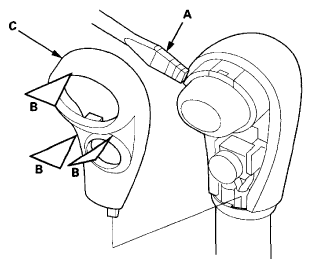

    Fig 1: Prying Shift Lever Knob Cover Locks And Shift Lever Knob Cover
    G06615915Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screws (A), the shift lever button (B), and the spring (C).

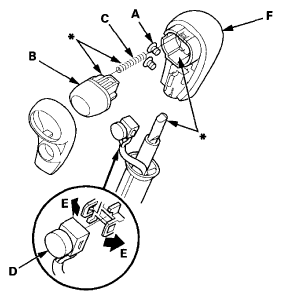

    Fig 2: Identifying Shift Lever Button, Spring And Screws
    G06615916Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the D3 switch (D) by expanding its locks (E) from the shift lever knob, and remove the shift lever knob (F).
  5. Remove the harness wire tie, and disconnect the D3 switch 2P connector (A).
    Fig 3: Identifying D3 Switch 2P Connector
    G06615917Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the D3 switch and the shift lever ring.
  7. Replace the D3 switch, and install the D3 switch harness through the shift lever ring.
    Fig 4: Identifying D3 Switch Harness Through Shift Lever Ring
    G06615918Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install the shift lever ring over the shift lever.
  9. Route the D3 switch harness (A), connect the D3 switch 2P connector (B), and install the connector in the holder.

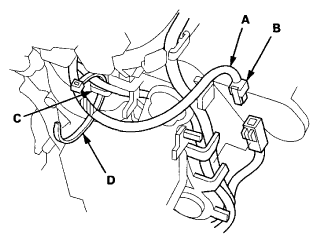

    Fig 5: Identifying D3 Switch Harness And D3 Switch 2P Connector
    G06615919Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Tie the harnesses of the D3 switch and the park pin switch at the guide (C) with the harness wire tie (D).
  11. Install the shift lever button spring (A) and the shift lever button (B) in the shift lever knob (C), and install the shift lever knob over the shift lever.

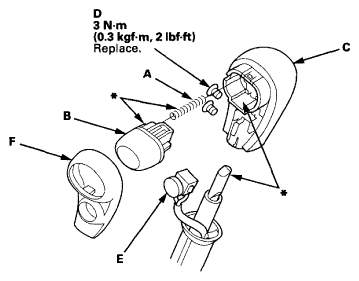

    Fig 6: Shift Lever Button Spring And Shift Lever Button In Shift Lever Knob With Torque Specification
    G06615920Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Secure the shift lever knob with new screws (D).
  13. Install the D3 switch (E) and the shift lever knob cover (F) on the shift lever knob.
  14. Install the shift lever (see SHIFT LEVER INSTALLATION ).
