Component Location Index: 4WD

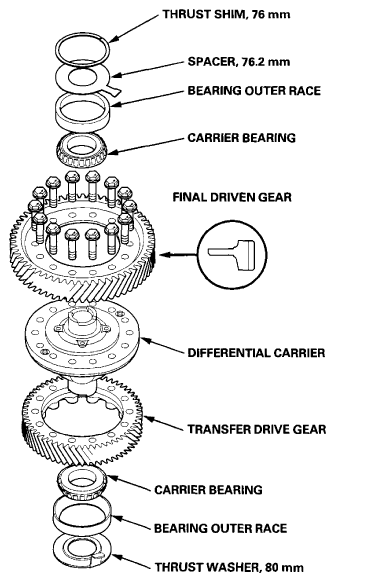

Fig 1: Identifying A/T Differential Component Location (4WD)

G06616128

Courtesy of AMERICAN HONDA MOTOR CO., INC.
