System Diagram

WARNING: This page is about a different car, the 2011 Honda CR-V and 2010 Honda CR-V. However, it is still accessible from the selected car via links, so may be relevant.

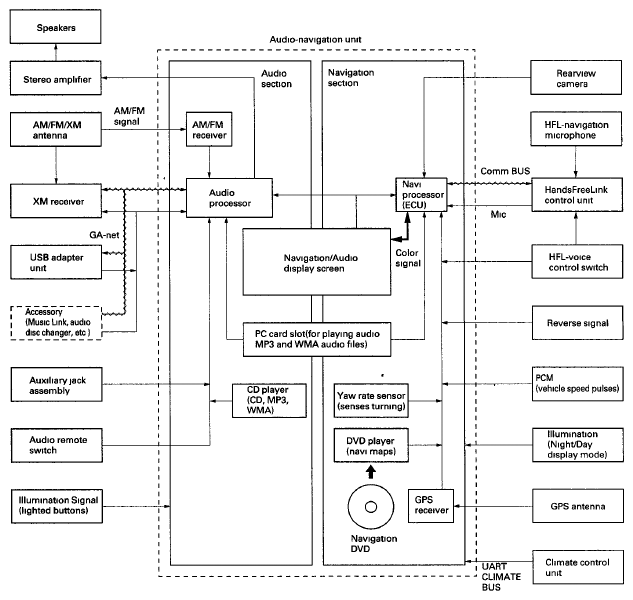

Fig 1: Navigation - System Diagram
G06612808Courtesy of AMERICAN HONDA MOTOR CO., INC.
