EVAP Canister Replacement

WARNING: This page is about a different car, the 2011 Honda CR-V and 2010 Honda CR-V. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle on a lift.
Remove the cover (A).

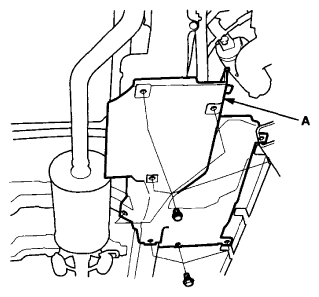

Fig 1: Identifying Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EVAP canister baffle cover (A).

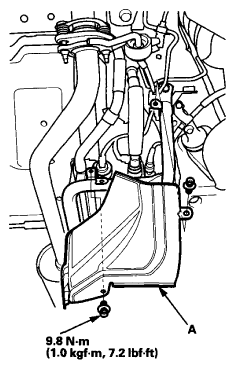

Fig 2: EVAP Canister Baffle Cover With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the hoses (A) and the fuel subharness 6P connector (B).

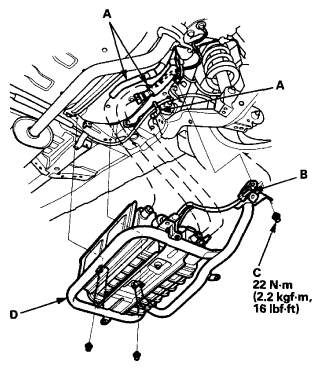

Fig 3: Hoses And Fuel Subharness 6P Connector With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts (C) and the EVAP canister bracket (D).
Remove the EVAP canister (A) from the EVAP canister bracket (B).

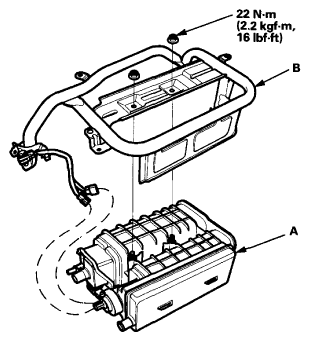

Fig 4: EVAP Canister And EVAP Canister Bracket With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the cap (A).

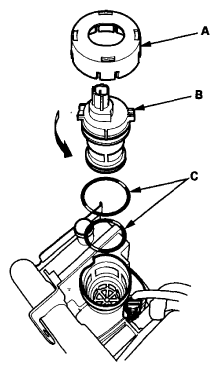

Fig 5: Identifying Cap And EVAP Canister Vent Shut Valve
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EVAP canister vent shut valve (B).
Install the EVAP canister vent shut valve into the new EVAP canister with new O-rings (C).
NOTE: Do not coat the O-rings with oil.
Install the parts in the reverse order of removal.
