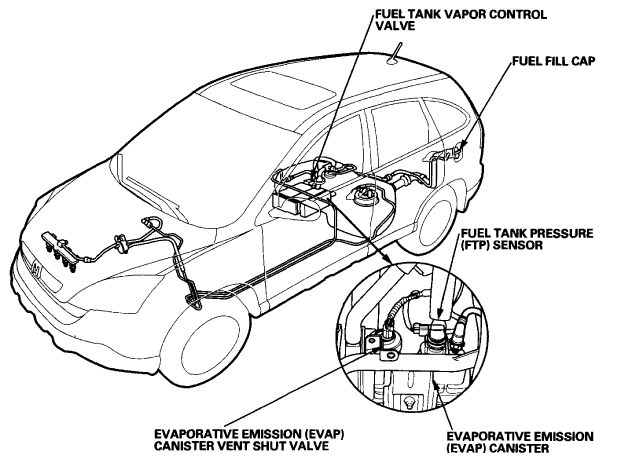

Fig 1: Identifying EVAP System Component Location (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

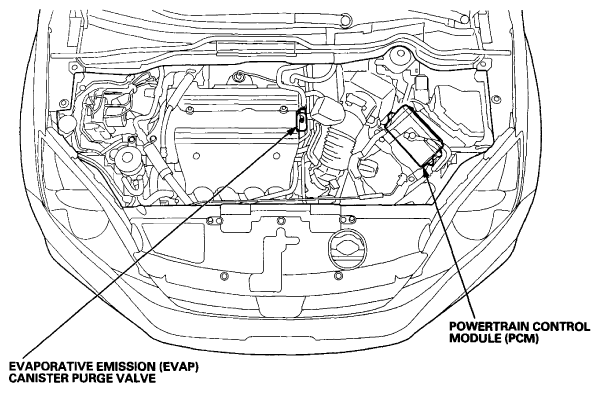

Fig 2: Identifying EVAP System Component Location (2 Of 2)
