Connecting Rod Bolt Inspection
WARNING: This page is about a different car, the 2011 Honda CR-V and 2010 Honda CR-V. However, it is still accessible from the selected car via links, so may be relevant.

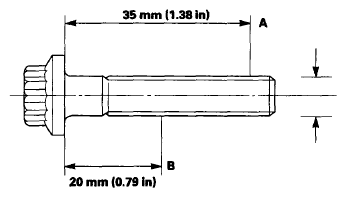

- Measure the diameter of each connecting rod bolt at point A and point B.
- Calculate the difference in diameter between point A and point B.
Point A-Point B = Difference in Diameter
Difference in Diameter
Specification: 0-0.1 mm (0-0.004 in)
- If the difference in diameter is out of specification, replace the connecting rod bolt.
