Fuel Fill Pipe Removal/Installation

  1. Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).
  2. Drain the fuel tank (see FUEL TANK DRAINING ).
  3. Remove the fuel fill cap.
  4. Remove the fuel fill pipe cover (A) and the fuel fill cap adapter (B).
    Fig 1: Identifying Fuel Fill Pipe Cover And Fuel Fill Cap Adapter
    G06610105Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the left rear wheel and its wheel speed sensors (see REAR ).
  6. Support the rear differential (4WD model) and the rear axle beam with a transmission jack.
  7. Remove the flange bolts from the bottom of the rear damper/springs (see STABILIZER BAR REPLACEMENT ).
  8. Remove the rear differential (4WD model) (see REAR DIFFERENTIAL REMOVAL ) and the rear suspension subframe mounting bolts (see REAR SUBFRAME TORQUE ).
  9. Lower the transmission jack (A) and the rear differential or the axle beam.
    NOTE: Be careful not to damage the connecting parts.
    Fig 2: Identifying Transmission Jack
    G06610106Courtesy of AMERICAN HONDA MOTOR CO., INC.

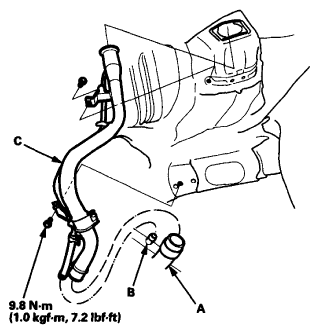

  10. Disconnect the fuel fill tube (A) and the fuel vapor hose (B).
    Fig 3: Fuel Fill Tube And Fuel Vapor Hose With Torque Specification
    G06610107Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Remove the fuel fill pipe (C).
  12. Install the parts in the reverse order of removal.
